Home /Products/Aluminum Oil level Sight Glass/Male BSP G thread 1/2 1/4 blower aluminium oil level sight glasses with 3mm glass professional manufacturer in China

Male BSP G thread 1/2 1/4 blower aluminium oil level sight glasses with 3mm glass professional manufacturer in China

1000pcs
MOQ
$ 0.8-10 pcs
Price
Male BSP G thread 1/2 1/4 blower aluminium oil level sight glasses with 3mm glass professional manufacturer in China
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Aluminium
Finish: No Finishing
Window: Material Body: Aluminum 6061 T6/Aluminum 6063 O-Ring: Viton,FKM,NBR, Aramid Gasket And Copper Seal Glass Thickness: 2mm To 5 Mm Reflectors: Stainless Steel 304 Reflector (Any Type You Can Chose With Reflector Or Without Reflector, Y
Glass Thickness: 2mm-8mm
Basic Infomation
Place of Origin: China
Brand Name: grand-mfg
Model Number: M10,M16,M20,M22,M26,M27,M30,M33,M42,M60
Payment & Shipping Terms
Packaging Details: exporting packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description

Material Body: Aluminum 6061 T6/Aluminum 6063

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.



item aluminum sight glasses
material body Aluminum 6061 T6/Aluminum 6063
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type UNC,UNF,Metric and BSP(G thread)
size Below you will get the size you wanted.Another size is okay.
OEM are welcome.
Usage Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

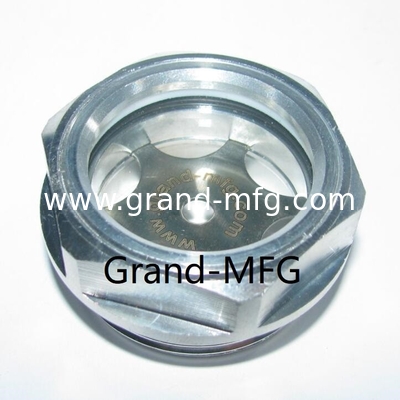

Male BSP G thread 1/2 1/4 blower aluminium oil level sight glasses with 3mm glass professional manufacturer in China 0

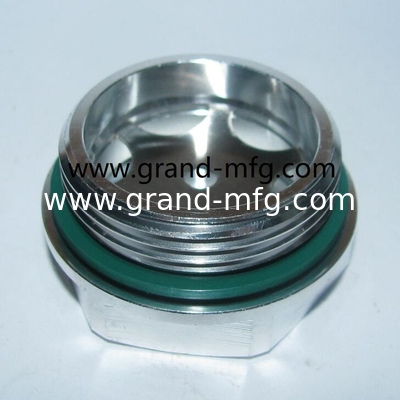

Male BSP G thread 1/2 1/4 blower aluminium oil level sight glasses with 3mm glass professional manufacturer in China 1



item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

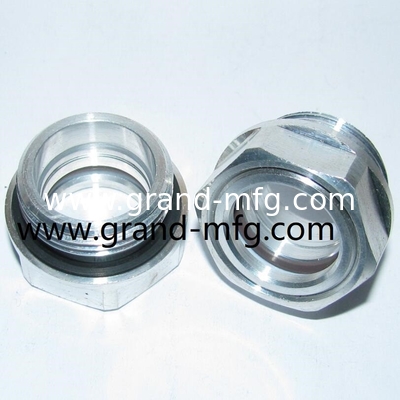

Male BSP G thread 1/2 1/4 blower aluminium oil level sight glasses with 3mm glass professional manufacturer in China 2



item steel sight glasses
material steel
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

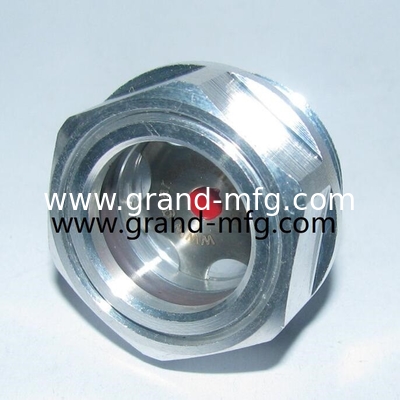

Male BSP G thread 1/2 1/4 blower aluminium oil level sight glasses with 3mm glass professional manufacturer in China 3



Item Fused sight glass
Material steel nickel plated
Window Natural Glass
Glass Thickness 2mm to 5 mm
Working Tempreature : －40℃～200℃
Temperature Assaults Date : －40℃～180℃
Working Pressure 2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof,
well poressure, good anti-cold concussion, marked clearly in the indication of
liquid location etc characters, and favor of the spacious domestic and overseas
air compressor producer deeply.

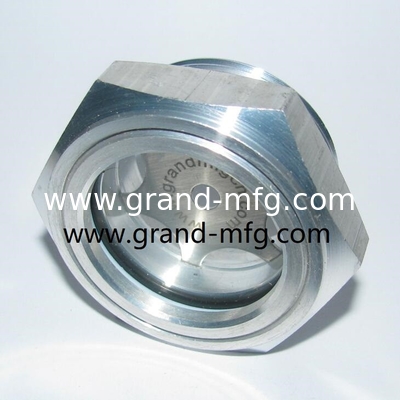

Male BSP G thread 1/2 1/4 blower aluminium oil level sight glasses with 3mm glass professional manufacturer in China 4Male BSP G thread 1/2 1/4 blower aluminium oil level sight glasses with 3mm glass professional manufacturer in China 5
