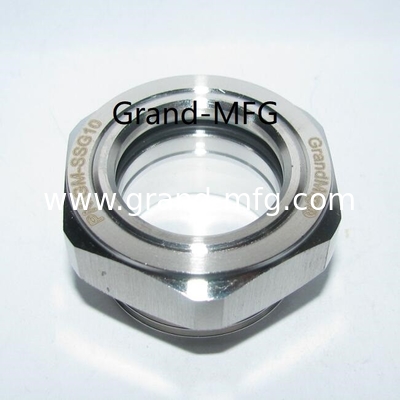

Stainless steel Oil level Sight glass, oil sight gauge, oil sight gage, oil level indicator, liquid sight glass,
sight window, view ports, male thread sight glasses, domed sight glass plug
Material
Body: SS304, SS304L, SS316, SUS316L SUS304, SUS304L, SUS316, SUS316L
O-Ring: Viton and NBR
Glass: Natural Glass
Glass Thickness: 2mm to 5 mm
Glass Type: General Glass, Tempered Glass and Borosilicate Glass
Resist Temperature Range: -30 Centigrade to 120 Centigrade.
Pressure Range: 5-10 Bar or 0.5MPa to 1 MPa.
Connections: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)
Size:M10X1, M16X1.5,M20X1.5, ,M27X1.5,M33X1.5,
G 3/8,G 1/2,G 3/4,G 1 NPT 3/8, NPT 1/2,NPT 3/4,NPT 1
MOQ: 2000 Pcs each size
Delivery time: 20 days.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer,
Compressor and Power Transmission.
| item |
SS sight glasses |
| material |
Stainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L |
| O-Ring |
Viton,FKM,NBR, Aramid gasket and Copper seal |
| window |
Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness |
2mm to 5 mm |
| Reflectors |
Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range |
.-30'C TO 120'C |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| item |
brass sight glasses |
| material |
brass |
| O-Ring |
Viton,FKM,NBR, Aramid gasket and Copper seal |
| window |
Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness |
2mm to 5 mm |
| Reflectors |
Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range |
.-30'C TO 120'C |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
