OIL SIGHT GLASSES:
PRODUCTS DESCRIPTION:
Brass sight glass
Material Body: Brass
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
| item | brass sight glasses |
| material | brass |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |

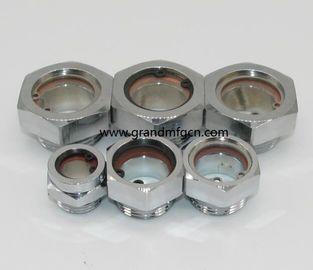

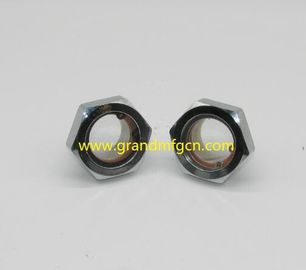

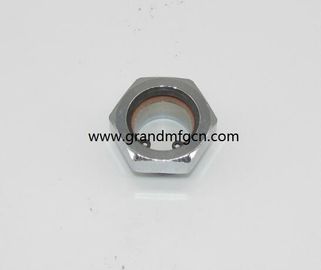

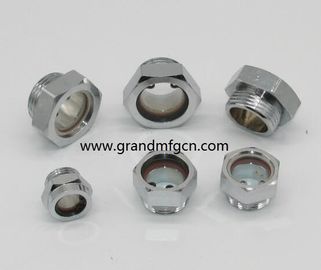

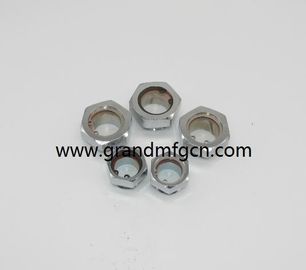

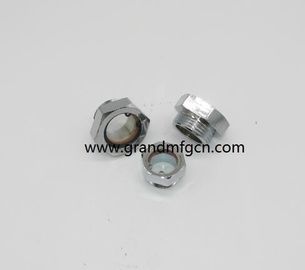

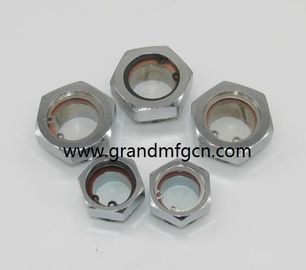

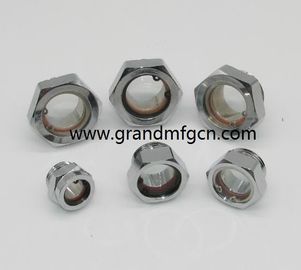

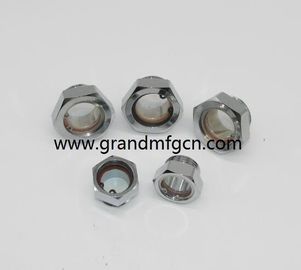

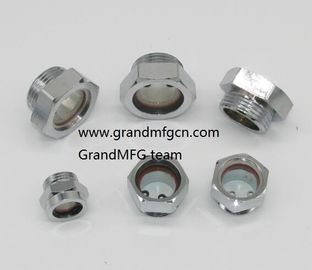

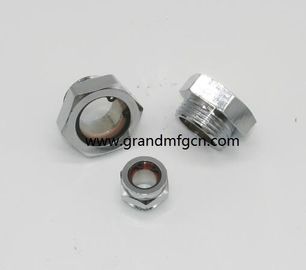

FUSED SIGHT GLASS:
| Item | Fused sight glass |
| Material | steel nickel plated |
| Window | Natural Glass |
| Glass Thickness | 2mm to 5 mm |
| Working Tempreature | : －40℃～200℃ |
| Temperature Assaults Date | : －40℃～180℃ |
| Working Pressure | 2.5, 4.0Mpa |
| Our products are provided with simple structure, novel appearance, high airproof, well poressure, good anti-cold concussion, marked clearly in the indication of liquid location etc characters, and favor of the spacious domestic and overseas air compressor producer deeply. |
|
| item | brass breather vent plugs |
| material | brass or aluminum |
| Thread Type | BSP,Metric,NPT |
| finish | Natural and Nickel Plated |
| size | Any Size OEM are welcome. |
| Work Pressure | 0.005 MPa to M 0.03 Mpa |
| Tempture Range | : -30 Cent degree to 130 Cent degree. |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission. |
| item | Magnetic oil drain plugs |
| material | Steel and Aluminum |
| Magnet Material | NdFeb magnets and Ferrite magnets |
| Thread Type | BSP,Metric |
| finish | Steel Zinc plated, Aluminum Natural and Aluminum Oxidized Color. |
| size | Metric thread,NPT Thread and BSP thread. OEM is welcome. |
| Usage | Auto engineer,gearbox,pump,oil tank and speed reducer. |
| item | steel plugs |
| material | Carbon Steel and Al 6061 |
| Thread Type | BSP,Metric,NPT |
| finish | Steel Zinc plated,Aluminum Natural and Aluminum Anodizing |
| size | Any Size OEM are welcome. |
| Usage | Hydraulic equipements, Gearboxes,Speed Reducer,Cars,Automotive, Truck,Pump and Power Transimission. |
| 1)Wihtstand hight pressure hydraulic plugs. 2)Covering standards of DIN, SAE, ISO, JIS and BS etc. |
|
| item | brass sight gauges |
| Housing | brass tube |
| tube | quartz glass tube |
| O-Ring and flat gaskets | NBR Rubber |
| Thread szie | M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2” |
| Temperature resistant | : -20’C to 120 ‘C. / 0’F to 260 ‘F |
| Distance of two bolts | 80mm to 600mm |
