Name: 1-1/4"carbon steel fused oil level sight glass male BSP G thread professional manufacturer and seller
Brand: grandmfg
SKU: 1/2",3/4",1",1 1/2",1 1/4",1 3/4",2"
Price: 0.8 USD
Availability: InStock
Rating: 5 (112 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Steel

Finishing: Nickel Plated

Thread: BSP,NPT,Metric Thread

Service: OEM And ODM Business

Basic Infomation

Place of Origin: China

Brand Name: grandmfg

Certification: CE

Model Number: 1/2",3/4",1",1 1/2",1 1/4",1 3/4",2"

Payment & Shipping Terms

Packaging Details: exporting packaging or as required.

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 50000/month

Gallery

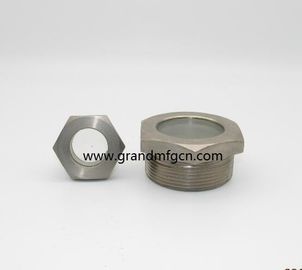

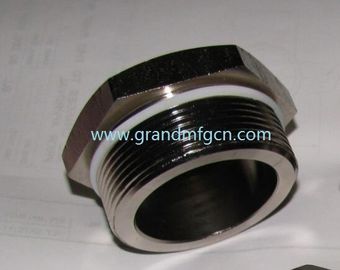

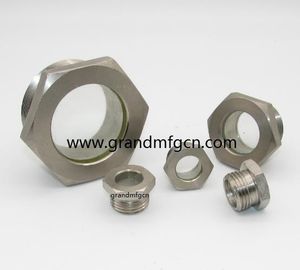

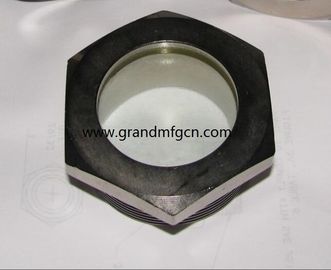

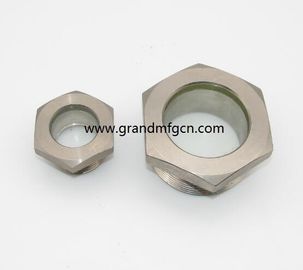

1-1/4"carbon steel fused oil level sight glass male BSP G thread professional manufacturer and seller

Product Description

1-1/4"carbon steel fused oil level sight glass male BSP G thread professional manufacturer and seller 0

Specifications:

Service: Compatible gases and liquids.

Window: nature glass (3mm to 6mm)

Body: Nickel Plated steet,stainless steel 304 and S.S 316

Reflector: S.S 304 Customers can chosed Plastic float Ball for oil or other liquid.

Temperature: -30'C to 260 'C (500 ‘F).

Max Pressure: 12 MPa(1740Psi)

Connections: NPT,NPTF,UNC,UNF,Metric and BSP (G thread)

Size: 1/4" to 2"

Usage: refrigeration machine, compressor,Hydraulic reservoir,Power Transimission and various machine.

Item	Fused sight glass
Material	steel nickel plated
Window	Natural Glass
Glass Thickness	2mm to 5 mm
Working Tempreature	: －40℃～200℃
Temperature Assaults Date	: －40℃～180℃
Working Pressure	2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof, well poressure, good anti-cold concussion, marked clearly in the indication of liquid location etc characters, and favor of the spacious domestic and overseas air compressor producer deeply.

1-1/4"carbon steel fused oil level sight glass male BSP G thread professional manufacturer and seller 7

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

1-1/4"carbon steel fused oil level sight glass male BSP G thread professional manufacturer and seller 9

item	brass sight gauges
Housing	brass tube
tube	quartz glass tube
O-Ring and flat gaskets	NBR Rubber
Thread szie	M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant	: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts	80mm to 600mm

1-1/4"carbon steel fused oil level sight glass male BSP G thread professional manufacturer and seller 13

item	Hydraulic oil level indicator
Housing	Aluminum alloy housing and inside thermoplastic (PC)
O-Ring and flat gaskets	NBR Rubber
Reflector	aluminum with printed white
Bolt	M10 Hexagon nut and washer in galvanized steel
Temperature resistant	: -20’C to 100 ‘C. / 0’F to 220 ‘F
Distance of two bolts	50mm to 500mm
Usage	Thin-wall container, Radiator, Hydraulic reservoir and receivers.

1-1/4"carbon steel fused oil level sight glass male BSP G thread professional manufacturer and seller 16

item	brass breather vent plugs
material	brass or aluminum
Thread Type	BSP,Metric,NPT
finish	Natural and Nickel Plated
size	Any Size OEM are welcome.
Work Pressure	0.005 MPa to M 0.03 Mpa
Tempture Range	: -30 Cent degree to 130 Cent degree.
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

1-1/4"carbon steel fused oil level sight glass male BSP G thread professional manufacturer and seller 18

1-1/4"carbon steel fused oil level sight glass male BSP G thread professional manufacturer and seller 21

1-1/4"carbon steel fused oil level sight glass male BSP G thread professional manufacturer and seller 22

1-1/4"carbon steel fused oil level sight glass male BSP G thread professional manufacturer and seller 23
