Name: BSP G thread 1/2 3/4 11/4 11/2 inch aluminum oil level sight glass supplier oil sight gauge bull eye oil levels
Brand: grand-mfg
SKU: 1/2",3/4",1",11/2",11/4",13/4",2"
Price: 0.8 USD
Availability: InStock
Rating: 5 (148 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Aluminium

Thread: BSP,Metric Thread

Connection: Thread

Basic Infomation

Place of Origin: China

Brand Name: grand-mfg

Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"

Payment & Shipping Terms

Packaging Details: exporting packaging

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 50000/month

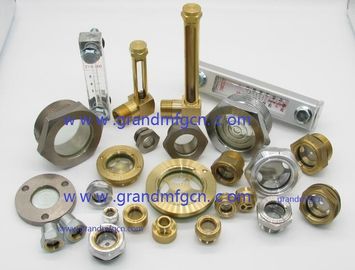

Gallery

BSP G thread 1/2 3/4 11/4 11/2 inch aluminum oil level sight glass supplier oil sight gauge bull eye oil levels

Product Description

Material Body: Aluminum 6061 T6/Aluminum 6063

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

item	aluminum sight glasses
material body	Aluminum 6061 T6/Aluminum 6063
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	UNC,UNF,Metric and BSP(G thread)
size	Below you will get the size you wanted.Another size is okay. OEM are welcome.
Usage	Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

BSP G thread 1/2 3/4 11/4 11/2 inch aluminum oil level sight glass supplier oil sight gauge bull eye oil levels 0

Item	plastic sight glasses
Material	Plastic PMMA
Window	plastic
Reflectors	Plastic PMMA
Resist Tempreature Range	:-30'C to 70'C
Pressure Range	1-5 Bar(0.1MPa to 0.5 MPa).
Size	Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage	Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

item	brass sight gauges
Housing	brass tube
tube	quartz glass tube
O-Ring and flat gaskets	NBR Rubber
Thread szie	M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant	: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts	80mm to 600mm

BSP G thread 1/2 3/4 11/4 11/2 inch aluminum oil level sight glass supplier oil sight gauge bull eye oil levels 1

item	Hydraulic oil level indicator
Housing	Aluminum alloy housing and inside thermoplastic (PC)
O-Ring and flat gaskets	NBR Rubber
Reflector	aluminum with printed white
Bolt	M10 Hexagon nut and washer in galvanized steel
Temperature resistant	: -20’C to 100 ‘C. / 0’F to 220 ‘F
Distance of two bolts	50mm to 500mm
Usage	Thin-wall container, Radiator, Hydraulic reservoir and receivers.

BSP G thread 1/2 3/4 11/4 11/2 inch aluminum oil level sight glass supplier oil sight gauge bull eye oil levels 2

item	plastic sight glasses
material	plastic
seal	NBR
Reflectors	Plastic PMMA
Resist Tempreature Range	: -30'C to 70'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	Metric and BSP(G thread)

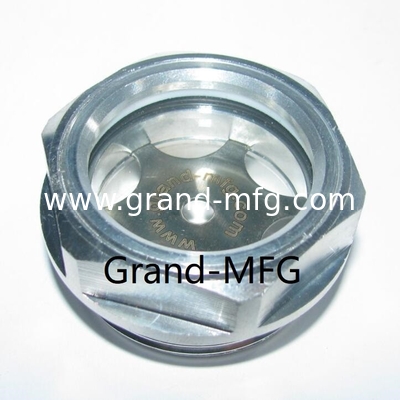

BSP G thread 1/2 3/4 11/4 11/2 inch aluminum oil level sight glass supplier oil sight gauge bull eye oil levels 3
