Home /Products/Aluminum Oil level Sight Glass/BSP G thread 3/4" hexagon head aluminum oil level sites with natural glass windows for industrial,male thread connection

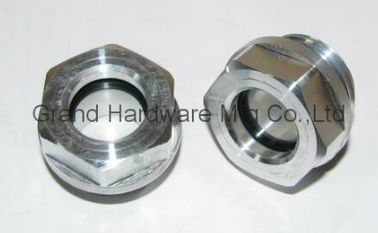

BSP G thread 3/4" hexagon head aluminum oil level sites with natural glass windows for industrial,male thread connection

1000pcs
MOQ
$ 0.8-10 pcs
Price
BSP G thread 3/4" hexagon head aluminum oil level sites with natural glass windows for industrial,male thread connection
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Aluminium
Finish: No Finishing
Connection: Thread
Basic Infomation
Place of Origin: China
Brand Name: grandmfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging or as required.
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description

Material Body: Aluminum 6061 T6/Aluminum 6063

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:UNC,UNF,Metric and BSP(G thread)

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.



item aluminum sight glasses
material body Aluminum 6061 T6/Aluminum 6063
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type UNC,UNF,Metric and BSP(G thread)
size Below you will get the size you wanted.Another size is okay.
OEM are welcome.
Usage Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.



BSP G thread 3/4" hexagon head aluminum oil level sites with natural glass windows for industrial,male thread connection 0BSP G thread 3/4" hexagon head aluminum oil level sites with natural glass windows for industrial,male thread connection 1BSP G thread 3/4" hexagon head aluminum oil level sites with natural glass windows for industrial,male thread connection 2BSP G thread 3/4" hexagon head aluminum oil level sites with natural glass windows for industrial,male thread connection 3

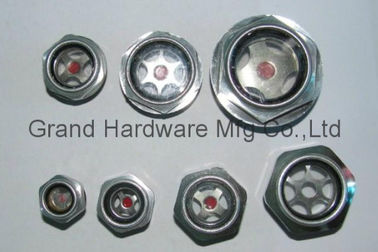

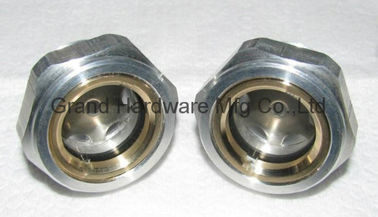

Other material sight glasses:

BSP G thread 3/4" hexagon head aluminum oil level sites with natural glass windows for industrial,male thread connection 4BSP G thread 3/4" hexagon head aluminum oil level sites with natural glass windows for industrial,male thread connection 5BSP G thread 3/4" hexagon head aluminum oil level sites with natural glass windows for industrial,male thread connection 6

BSP G thread 3/4" hexagon head aluminum oil level sites with natural glass windows for industrial,male thread connection 7

BSP G thread 3/4" hexagon head aluminum oil level sites with natural glass windows for industrial,male thread connection 8BSP G thread 3/4" hexagon head aluminum oil level sites with natural glass windows for industrial,male thread connection 9





Please contact us for checking stocks and confirming the specifications.
