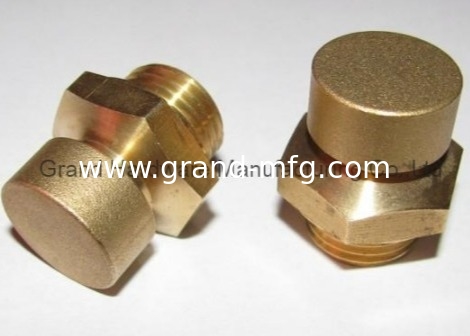

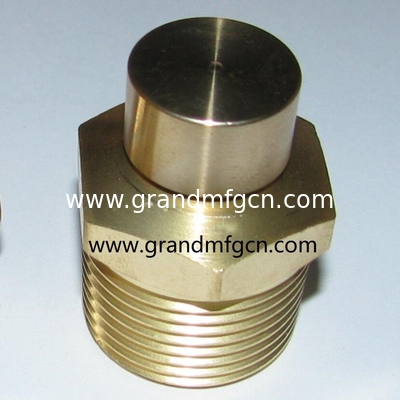

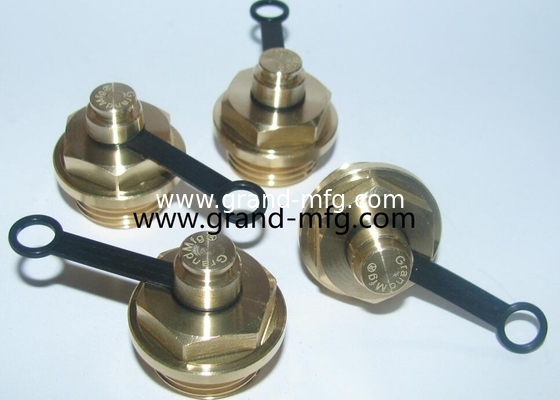

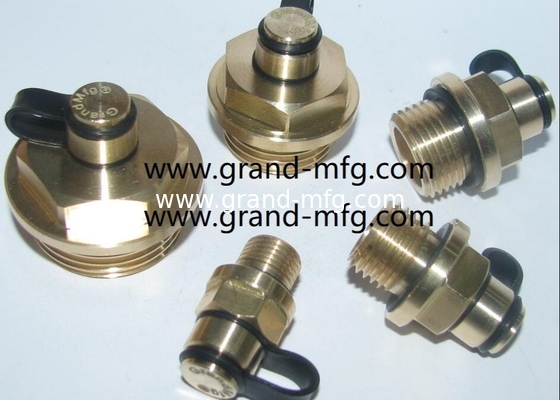

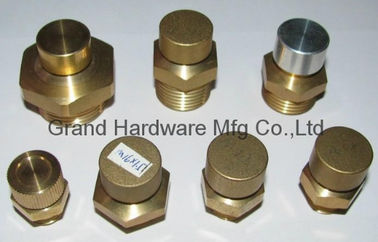

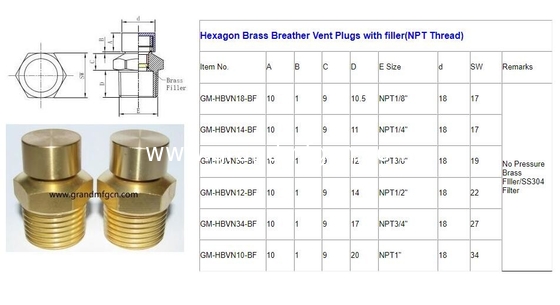

Breather Vent Plugs,Breather cap,Vent Plugs,Breather Plugs,Breather vents,Air vent plugs,Air released plug
Material: Brass and Aluminum
Finish: Natural and Nickel Plated
Thread Type: BSP,Metric,NPT
Size: Any Size OEM are welcome.
Work Pressure: 0.005 MPa to M 0.03 MPa
Tempture Range: -30 Cent degree to 130 Cent degree.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer,
Compressor and Power Transmission.
| item |
brass breather vent plugs |
| material |
brass or aluminum |
| Thread Type |
BSP,Metric,NPT |
| finish |
Natural and Nickel Plated |
| size |
Any Size OEM are welcome. |
| Work Pressure |
0.005 MPa to M 0.03 Mpa |
| Tempture Range |
: -30 Cent degree to 130 Cent degree. |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers,
Gearboxes, Speed Reducer, Compressor and Power Transmission. |
Aluminum Oil level sight glass Indicator plugs
Material Body: Aluminum 6061 T6/Aluminum 6063
Finish: aluminum natural and aluminum oxidized color/ Anodizing color.
O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 8 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 128'C
Pressure Range: 5-50 Bar(0.5MPa to 5 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
| item |
aluminum sight glasses |
| material body |
Aluminum 6061 T6/Aluminum 6063 |
| O-Ring |
Viton,FKM,NBR, Aramid gasket and Copper seal |
| window |
Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness |
2mm to 5 mm |
| Reflectors |
Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range |
.-30'C TO 120'C |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
UNC,UNF,Metric and BSP(G thread) |
| size |
Below you will get the size you wanted.Another size is okay.
OEM are welcome. |
| Usage |
Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission. |
Brass Oil level sight glass Pugs
Material Body: Brass
O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 8 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 180'C
Pressure Range: 5-50 Bar(1MPa to 5 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Worm gearbox, helical gear boxes,
variable speed motor,rotomotive Worm gearboxes,Compressor and Power Transimission.
| item |
brass sight glasses |
| material |
brass |
| O-Ring |
Viton,FKM,NBR, Aramid gasket and Copper seal |
| window |
Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness |
2mm to 5 mm |
| Reflectors |
Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range |
.-30'C TO 120'C |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
Please contact us for checking stocks and confirming the specifications.
