Material: Brass and Aluminum
Finish: Natural and Nickel Plated
Thread Type: BSP,Metric,NPT
Size: Any Size OEM are welcome.
Work Pressure: 0.005 MPa to M 0.03 MPa
Tempture Range: -30 Cent degree to 130 Cent degree.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes,
Speed Reducer, Compressor and Power Transmission.
| item |

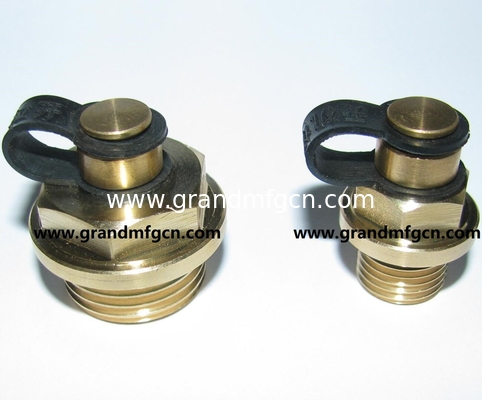

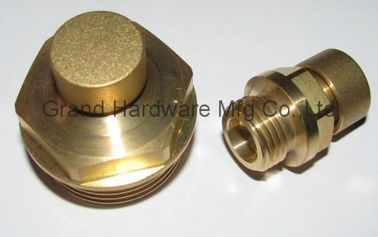

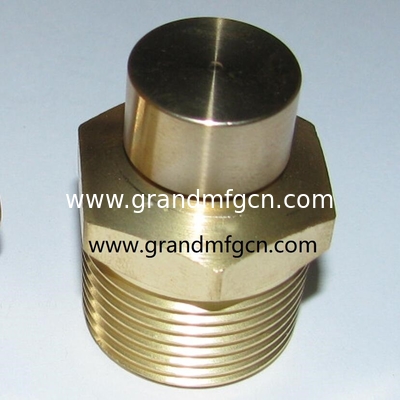

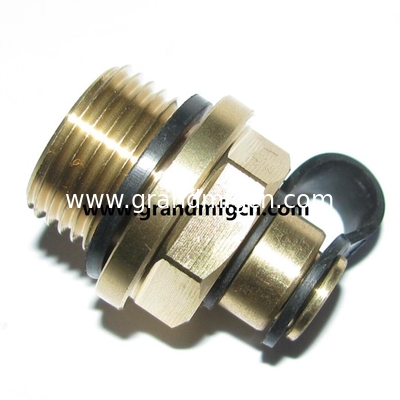

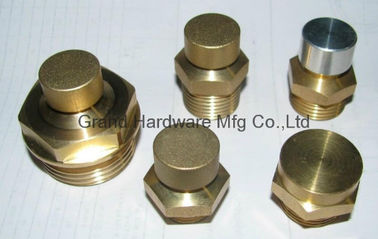

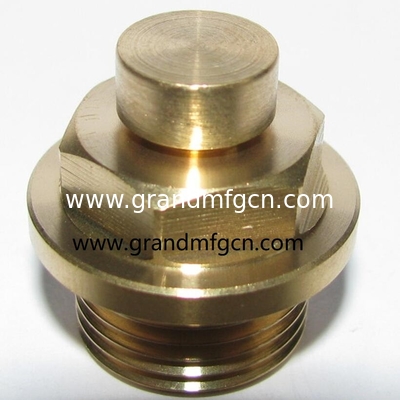

brass breather vent plugs |
| material |
brass or aluminum |
| Thread Type |
BSP,Metric,NPT |
| finish |
Natural and Nickel Plated |
| size |
Any Size OEM are welcome. |
| Work Pressure |
0.005 MPa to M 0.03 Mpa |
| Tempture Range |
: -30 Cent degree to 130 Cent degree. |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers,
Gearboxes, Speed Reducer, Compressor and Power Transmission. |
Other products supplied:
Threaded Fused Window Sights,Fused Sight Glass,Fused level sight gauge,
Fused Sight windows,Metal Sight Glass
Specifications:
Service: Compatible gases and liquids.
Window: nature glass (3mm to 6mm)
Body: Nickel Plated steet,stainless steel 304 and S.S 316
Reflector: S.S 304 Customers can chosed Plastic float Ball for oil or other liquid.
Temperature: -30'C to 260 'C (500 ‘F).
Max Pressure: 12 MPa(1740Psi)
Connections: NPT,NPTF,UNC,UNF,Metric and BSP (G thread)
Size: 1/4" to 2"
Usage: refrigeration machine, compressor,Hydraulic reservoir,Power Transimission and various machine.
| Item |
Fused sight glass |
| Material |
steel nickel plated |
| Window |
Natural Glass |
| Glass Thickness |
2mm to 5 mm |
| Working Tempreature |
: －40℃～200℃ |
| Temperature Assaults Date |
: －40℃～180℃ |
| Working Pressure |
2.5, 4.0Mpa |
Our products are provided with simple structure, novel appearance, high airproof,
well poressure, good anti-cold concussion, marked clearly in the indication of
liquid location etc characters, and favor of the spacious domestic and overseas
air compressor producer deeply. |
Brass Tube Oil level Indicator/Oil level Gauge with glass tube.Plastic level indicator/gauge
Housing: Brass Tube .
Tube: Real glass tube.
O-Ring and flat gaskets: NBR Rubber.
Thread szie: M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts: 80mm to 600mm
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes,
Speed Reducer, Compressor and Power Transmission.
| item |
brass sight gauges |
| Housing |
brass tube |
| tube |
quartz glass tube |
| O-Ring and flat gaskets |
NBR Rubber |
| Thread szie |
M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”,
G1/2”, NPT1/4, NPT3/8, NPT1/2” |
| Temperature resistant |
: -20’C to 120 ‘C. / 0’F to 260 ‘F |
| Distance of two bolts |
80mm to 600mm |
Please contact us for checking our stocks and confirming the specifications.
