male NPT pipe thread 1/2" High performance Oil tank Air breather filter Gearbox/Reducer breathable vent plug

500pcs
MOQ
$ 0.8-10 pcs
Price
male NPT pipe thread 1/2" High performance Oil tank Air breather filter Gearbox/Reducer breathable vent plug
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass Hpb57-3
Thread: NPT
Surface Treatment: No Finishing
Basic Infomation
Place of Origin: China
Brand Name: grandmfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description

Material: Brass and Aluminum
Finish: Natural and Nickel Plated
Thread Type: BSP,Metric,NPT
Size: Any Size OEM are welcome.
Work Pressure: 0.005 MPa to M 0.03 MPa
Tempture Range: -30 Cent degree to 130 Cent degree.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

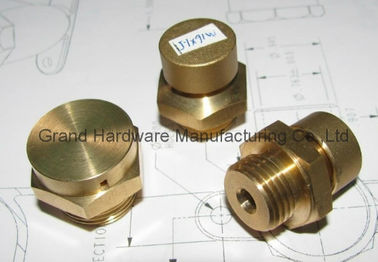

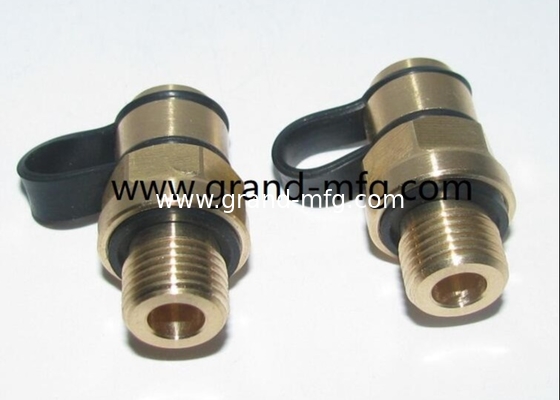

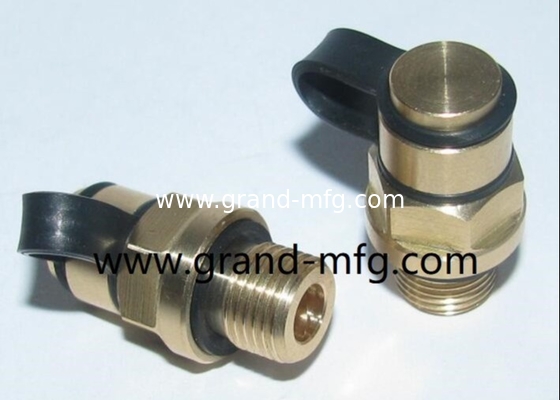

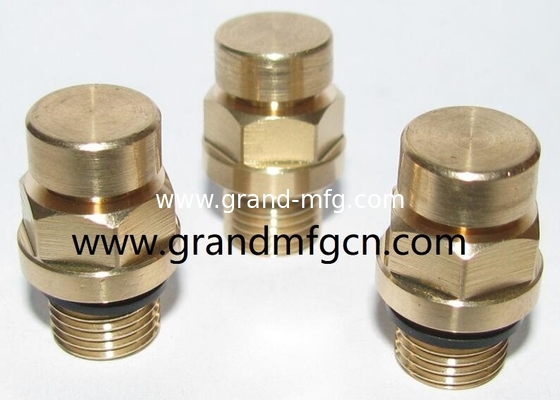

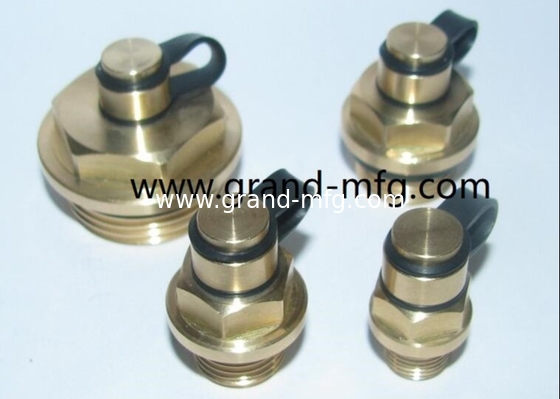

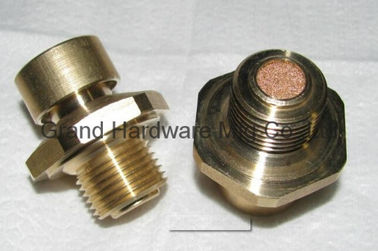

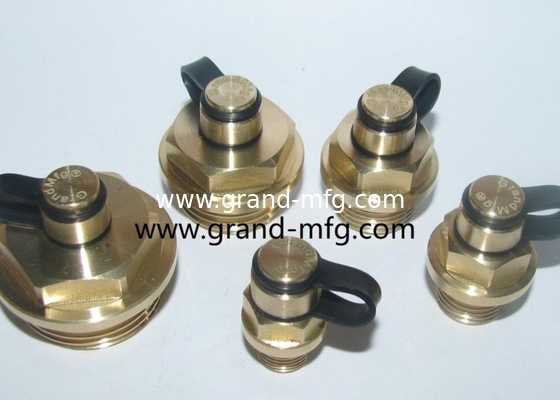

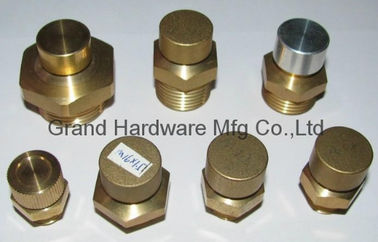

item brass breather vent plugs
material brass or aluminum
Thread Type BSP,Metric,NPT
finish Natural and Nickel Plated
size Any Size OEM are welcome.
Work Pressure 0.005 MPa to M 0.03 Mpa
Tempture Range : -30 Cent degree to 130 Cent degree.
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers,
Gearboxes, Speed Reducer, Compressor and Power Transmission.



male NPT pipe thread 1/2" High performance Oil tank Air breather filter Gearbox/Reducer breathable vent plug 0

male NPT pipe thread 1/2" High performance Oil tank Air breather filter Gearbox/Reducer breathable vent plug 1

item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)


male NPT pipe thread 1/2" High performance Oil tank Air breather filter Gearbox/Reducer breathable vent plug 2

male NPT pipe thread 1/2" High performance Oil tank Air breather filter Gearbox/Reducer breathable vent plug 3male NPT pipe thread 1/2" High performance Oil tank Air breather filter Gearbox/Reducer breathable vent plug 4

Item Fused sight glass
Material steel nickel plated
Window Natural Glass
Glass Thickness 2mm to 5 mm
Working Tempreature : －40℃～200℃
Temperature Assaults Date : －40℃～180℃
Working Pressure 2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof,
well poressure, good anti-cold concussion, marked clearly in the indication of
liquid location etc characters, and favor of the spacious domestic and overseas
air compressor producer deeply.


male NPT pipe thread 1/2" High performance Oil tank Air breather filter Gearbox/Reducer breathable vent plug 5male NPT pipe thread 1/2" High performance Oil tank Air breather filter Gearbox/Reducer breathable vent plug 6male NPT pipe thread 1/2" High performance Oil tank Air breather filter Gearbox/Reducer breathable vent plug 7

Item Flat flange sight glass
Material steel nickel plated
Window Natural Glass
Glass Thickness 2mm to 5 mm
Working Tempreature : －40℃～200℃
Temperature Assaults Date : －40℃～180℃
Working Pressure 2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof,
well poressure, good anti-cold concussion, marked clearly in the indication of
liquid location etc characters, and favor of the spacious domestic and overseas
air compressor producer deeply.


male NPT pipe thread 1/2" High performance Oil tank Air breather filter Gearbox/Reducer breathable vent plug 8male NPT pipe thread 1/2" High performance Oil tank Air breather filter Gearbox/Reducer breathable vent plug 9

item aluminum sight glasses
material body Aluminum 6061 T6/Aluminum 6063
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type UNC,UNF,Metric and BSP(G thread)
size Below you will get the size you wanted.Another size is okay.
OEM are welcome.
Usage Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.


male NPT pipe thread 1/2" High performance Oil tank Air breather filter Gearbox/Reducer breathable vent plug 10male NPT pipe thread 1/2" High performance Oil tank Air breather filter Gearbox/Reducer breathable vent plug 11male NPT pipe thread 1/2" High performance Oil tank Air breather filter Gearbox/Reducer breathable vent plug 12male NPT pipe thread 1/2" High performance Oil tank Air breather filter Gearbox/Reducer breathable vent plug 13
Just please contact us for checking GRANDMFG stocks and confirming the specifications.
