Name: male NPT pipe threads 1/2 inch oil sights brass oil level sight gauges indicators with Pyrex glass for auto trucks
Brand: Grand Hardware Manufacturing Co.,Ltd
SKU: 1/2",3/4",1",11/2",11/4",13/4",2"
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Brass Hpb57-3

Thread: BSP,NPT,Metric Thread

Finish: Natural

Window: Natural Glass

Glass Thickness: 2mm-5mm

Basic Infomation

Place of Origin: China

Brand Name: grandmfg

Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"

Payment & Shipping Terms

Packaging Details: exporting packaging

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 100000/month

Gallery

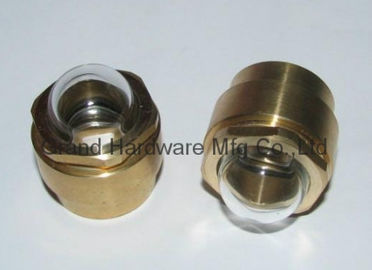

male NPT pipe threads 1/2 inch oil sights brass oil level sight gauges indicators with Pyrex glass for auto trucks

Product Description

Material Body: Brass

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

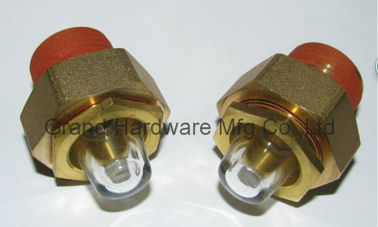

male NPT pipe threads 1/2 inch oil sights brass oil level sight gauges indicators with Pyrex glass for auto trucks 0

item	SS sight glasses
material	Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

item	brass sight gauges
Housing	brass tube
tube	quartz glass tube
O-Ring and flat gaskets	NBR Rubber
Thread szie	M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant	: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts	80mm to 600mm

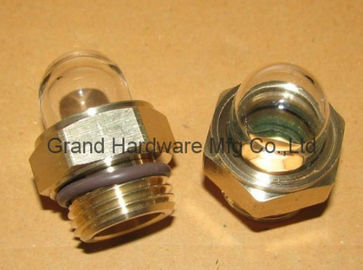

male NPT pipe threads 1/2 inch oil sights brass oil level sight gauges indicators with Pyrex glass for auto trucks 4

item	brass breather vent plugs
material	brass or aluminum
Thread Type	BSP,Metric,NPT
finish	Natural and Nickel Plated
size	Any Size OEM are welcome.
Work Pressure	0.005 MPa to M 0.03 Mpa
Tempture Range	: -30 Cent degree to 130 Cent degree.
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

male NPT pipe threads 1/2 inch oil sights brass oil level sight gauges indicators with Pyrex glass for auto trucks 6

item	Radiator Coolant Filler Necks & Cap
material	SUS304,Steel,aluminum and brass.
Main area used	Various brands of car,truck,etc.
Withstand Max Pressure	0.6MPa,0.9MPa and 1.1MPa
All goods are strictly monitored and inspected from production to delivery.
Transportation: Container Freight & International Multimodal Transport
Packing: General exporting package or according to customers' requirements.

male NPT pipe threads 1/2 inch oil sights brass oil level sight gauges indicators with Pyrex glass for auto trucks 7

Just please contact us for checking our stocks and confirming the specifications.
