UNEF 1-1/2 INCH threads fused sight glass for refrigeration equipment with natural glass

1000pcs
MOQ
$ 0.8-10 pcs
Price
UNEF 1-1/2 INCH threads fused sight glass for refrigeration equipment with natural glass
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Steel
Thread: BSP,NPT,Metric Thread
Finish: Nickel Plated
Window: Natural Glass
Glass Thickness: 2mm-5mm
Basic Infomation
Place of Origin: China
Brand Name: grandmfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description




Service: Compatible gases and liquids.


Window: nature glass (3mm to 6mm)


Body: Nickel Plated steet,stainless steel 304 and S.S 316


Reflector: S.S 304 Customers can chosed Plastic float Ball for oil or other liquid.


Temperature: -30'C to 260 'C (500 ‘F).

Max Pressure: 12 MPa(1740Psi)


Connections: NPT,NPTF,UNC,UNF,Metric and BSP (G thread)

Size: 1/4" to 2"

Usage: refrigeration machine, compressor,Hydraulic reservoir,Power Transimission and various machine.

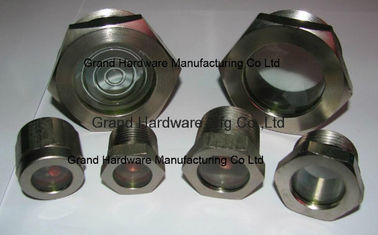

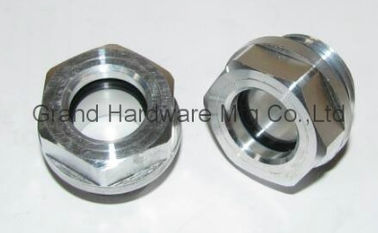

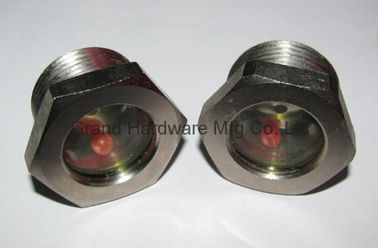

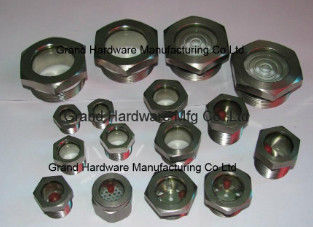

Item Fused sight glass
Material steel nickel plated
Window Natural Glass
Glass Thickness 2mm to 5 mm
Working Tempreature : －40℃～200℃
Temperature Assaults Date : －40℃～180℃
Working Pressure 2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof,
well poressure, good anti-cold concussion, marked clearly in the indication of
liquid location etc characters, and favor of the spacious domestic and overseas
air compressor producer deeply.



UNEF 1-1/2 INCH threads fused sight glass for refrigeration equipment with natural glass 0UNEF 1-1/2 INCH threads fused sight glass for refrigeration equipment with natural glass 1UNEF 1-1/2 INCH threads fused sight glass for refrigeration equipment with natural glass 2UNEF 1-1/2 INCH threads fused sight glass for refrigeration equipment with natural glass 3

UNEF 1-1/2 INCH threads fused sight glass for refrigeration equipment with natural glass 4

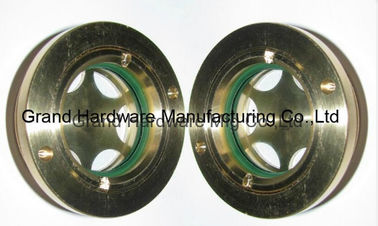

item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



UNEF 1-1/2 INCH threads fused sight glass for refrigeration equipment with natural glass 5UNEF 1-1/2 INCH threads fused sight glass for refrigeration equipment with natural glass 6

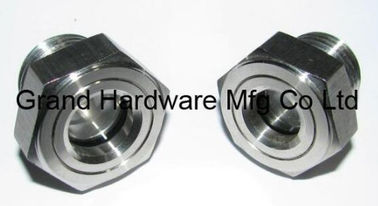

item SS sight glasses
material Stainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



UNEF 1-1/2 INCH threads fused sight glass for refrigeration equipment with natural glass 7



item brass sight gauges
Housing brass tube
tube quartz glass tube
O-Ring and flat gaskets NBR Rubber
Thread szie M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”,
G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant : -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts 80mm to 600mm



UNEF 1-1/2 INCH threads fused sight glass for refrigeration equipment with natural glass 8



item Hydraulic oil level indicator
Housing Aluminum alloy housing and inside thermoplastic (PC)
O-Ring and flat gaskets NBR Rubber
Reflector aluminum with printed white
Bolt M10 Hexagon nut and washer in galvanized steel
Temperature resistant : -20’C to 100 ‘C. / 0’F to 220 ‘F
Distance of two bolts 50mm to 500mm
Usage Thin-wall container, Radiator, Hydraulic reservoir and receivers.

UNEF 1-1/2 INCH threads fused sight glass for refrigeration equipment with natural glass 9UNEF 1-1/2 INCH threads fused sight glass for refrigeration equipment with natural glass 10









item sight glasses,oil gauges
oil drain plugs,steel plugs
breather vent plugs
auto radiator parts
magnetic drain plugs
precision machined parts(brass,steel,stainless steel,aluminum)
hydraulic steel fittings
OEM and ODM business welcome.
