Name: NPT pipe threads 1-1/4 inch nickel plated steel fused indicators for refrigeration equipments
Brand: grandmfg
SKU: 1/2",3/4",1",11/2",11/4",13/4",2"
Price: 0.8 USD
Availability: InStock
Rating: 4.9 (165 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Steel

Thread: BSP,NPT,Metric Thread

Finish: Nickel Plated

Window: Natural Glass

Glass Thickness: 2mm-5mm

Basic Infomation

Place of Origin: China

Brand Name: grandmfg

Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"

Payment & Shipping Terms

Packaging Details: exporting packaging

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 100000/month

Gallery

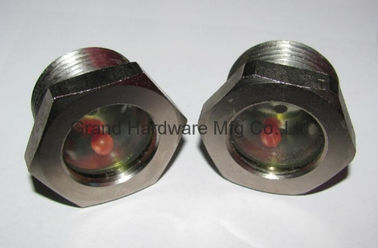

NPT pipe threads 1-1/4 inch nickel plated steel fused indicators for refrigeration equipments

Product Description

Service: Compatible gases and liquids.
Window: nature glass (3mm to 6mm)
Body: Nickel Plated steet,stainless steel 304 and S.S 316
Reflector: S.S 304 Customers can chosed Plastic float Ball for oil or other liquid.
Temperature: -30'C to 260 'C (500 ‘F).
Max Pressure: 12 MPa(1740Psi)
Connections: NPT,NPTF,UNC,UNF,Metric and BSP (G thread)
Size: 1/4" to 2"
Usage: refrigeration machine, compressor,Hydraulic reservoir,Power Transimission and various machine.

Item	Fused sight glass
Material	steel nickel plated
Window	Natural Glass
Glass Thickness	2mm to 5 mm
Working Tempreature	: －40℃～200℃
Temperature Assaults Date	: －40℃～180℃
Working Pressure	2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof, well poressure, good anti-cold concussion, marked clearly in the indication of liquid location etc characters, and favor of the spacious domestic and overseas air compressor producer deeply.

NPT pipe threads 1-1/4 inch nickel plated steel fused indicators for refrigeration equipments 0

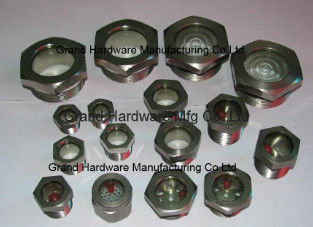

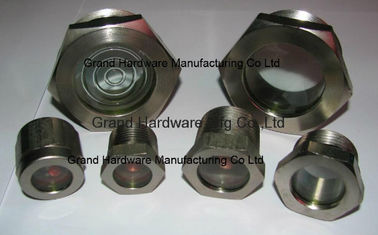

item	SS sight glasses
material	Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

NPT pipe threads 1-1/4 inch nickel plated steel fused indicators for refrigeration equipments 3

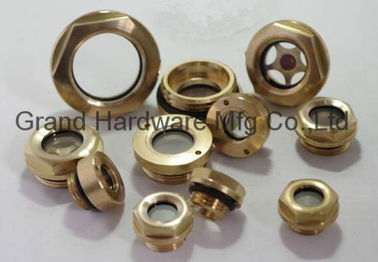

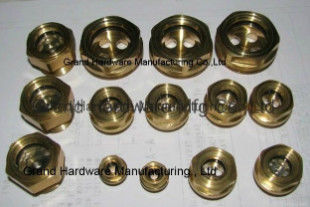

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

NPT pipe threads 1-1/4 inch nickel plated steel fused indicators for refrigeration equipments 4

item	aluminum sight glasses
material body	Aluminum 6061 T6/Aluminum 6063
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	UNC,UNF,Metric and BSP(G thread)
size	Below you will get the size you wanted.Another size is okay. OEM are welcome.
Usage	Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

NPT pipe threads 1-1/4 inch nickel plated steel fused indicators for refrigeration equipments 5

Item	plastic sight glasses
Material	Plastic PMMA
Window	plastic
Reflectors	Plastic PMMA
Resist Tempreature Range	:-30'C to 70'C
Pressure Range	1-5 Bar(0.1MPa to 0.5 MPa).
Size	Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage	Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

NPT pipe threads 1-1/4 inch nickel plated steel fused indicators for refrigeration equipments 7

item	brass sight gauges
Housing	brass tube
tube	quartz glass tube
O-Ring and flat gaskets	NBR Rubber
Thread szie	M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant	: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts	80mm to 600mm

NPT pipe threads 1-1/4 inch nickel plated steel fused indicators for refrigeration equipments 9
