Home /Products/Stainless Steel liquid Sight Glass/Radiator SS304 surge tank level sight glass windows for visual inspection of flow liquid supplier and manufacturer

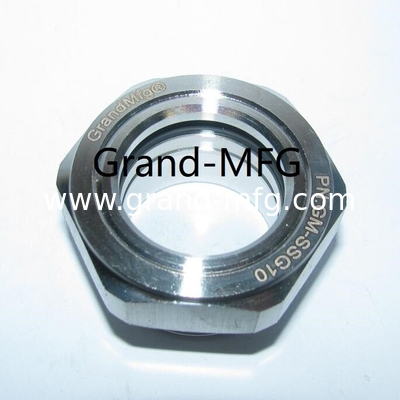

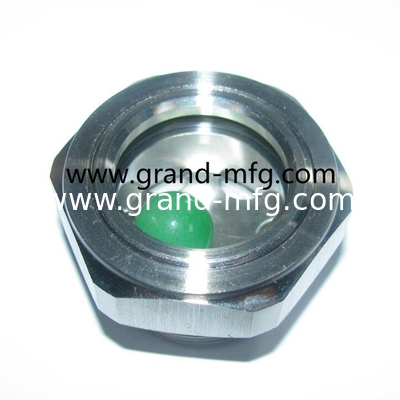

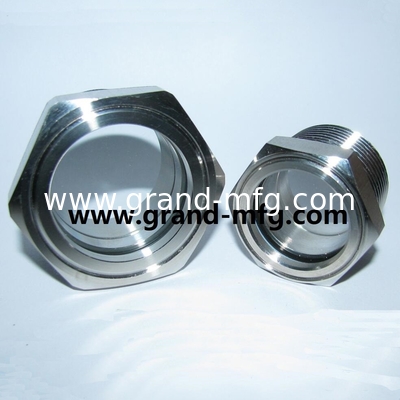

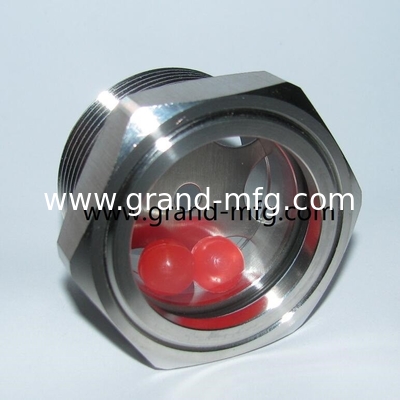

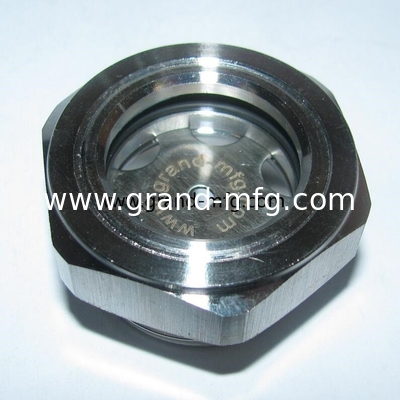

Radiator SS304 surge tank level sight glass windows for visual inspection of flow liquid supplier and manufacturer

1000pcs
MOQ
$ 0.8-10 pcs
Price
Radiator SS304 surge tank level sight glass windows for visual inspection of flow liquid supplier and manufacturer
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Ss304, Ss316
Thread: BSP,NPT,Metric Thread
Finish: No Finishing
Service: OEM And ODM Business
Basic Infomation
Place of Origin: China
Brand Name: grandmfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description

Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.



item SS sight glasses
material Stainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Radiator SS304 surge tank level sight glass windows for visual inspection of flow liquid supplier and manufacturer 0

other products supplied:



item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)





  brass machined parts
material Brass,Copper and Bronze.
finish Natural,Polished,Nickel plated and Chrome Plated
Processing Brass Hot Forged,Bronze Sand Castings,CNC machining, CNC turning or CNC Lathing,Milling,Sandblasted
Dimension Tolerance: CNC Lathe +/-0.01 mm.
General Lathe +/-0.1 to 0.2 mm

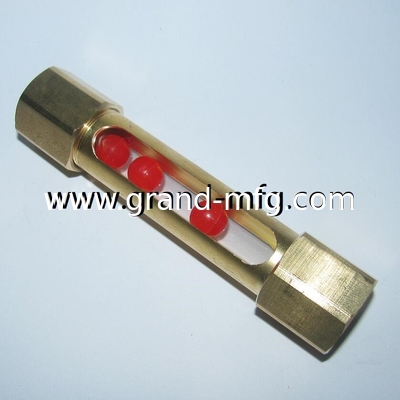

item brass sight gauges
Housing brass tube
tube quartz glass tube
O-Ring and flat gaskets NBR Rubber
Thread szie M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”,
G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant : -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts 80mm to 600mm





item Magnetic oil drain plugs
material Steel and Aluminum
Magnet Material NdFeb magnets and Ferrite magnets
Thread Type BSP,Metric
finish Steel Zinc plated, Aluminum Natural and Aluminum Oxidized Color.
size Metric thread,NPT Thread and BSP thread. OEM is welcome.
Usage Auto engineer,gearbox,pump,oil tank and speed reducer.





item brass breather vent plugs
material brass or aluminum
Thread Type BSP,Metric,NPT
finish Natural and Nickel Plated
size Any Size OEM are welcome.
Work Pressure 0.005 MPa to M 0.03 Mpa
Tempture Range : -30 Cent degree to 130 Cent degree.
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers,
Gearboxes, Speed Reducer, Compressor and Power Transmission.





item Radiator Coolant Filler Necks & Cap
material SUS304,Steel,aluminum and brass.
Main area used Various brands of car,truck,etc.
Withstand Max Pressure 0.6MPa,0.9MPa and 1.1MPa
All goods are strictly monitored and inspected from production to delivery.
Transportation: Container Freight & International Multimodal Transport
Packing: General exporting package or according to customers' requirements.



Just please contact us for checking our stocks and confirming the specifications.
