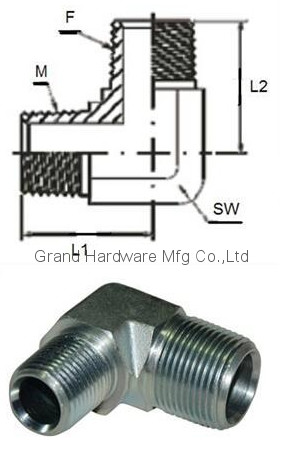

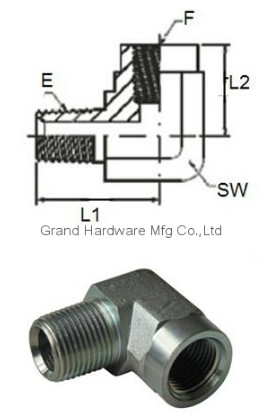

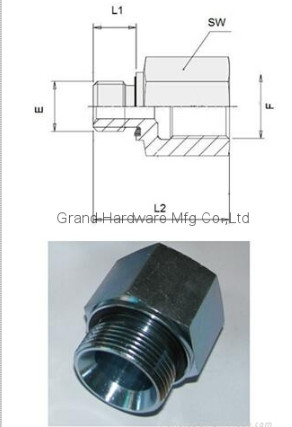

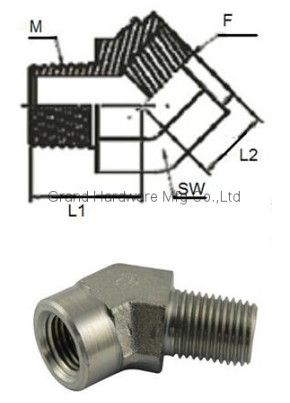

BSP NPT Metric threadhydraulic steel fittings nickel plated,thread connection

1000pcs
MOQ
$ 0.8-10 pcs
Price
BSP NPT Metric threadhydraulic steel fittings nickel plated,thread connection
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Steel
Thread: BSP,NPT,Metric Thread
Finish: Nickel Plated
Basic Infomation
Place of Origin: China
Brand Name: grandmfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description

Grand Hardware Manufacturing Co., Ltd

& Yuhuan Yize Machinery Factory is a precision metal parts supplier.
--Professional OEM metal parts supplier in many categories.such as CNC machining parts,CNC turning parts,precision metal parts,stamping parts and punching parts.

--Especially professional in oil level sight glass,fused windows sights,breather vent plugs,wheel bolts,hydraulic adapters and hydraulic steel oil drain plugs.

--We focus on the below business:
1.High gloss cutting drill, high speed CNC and digital control processing.
2. Both metal and plastic piece parts laser radium carving.
3. Exterior parts stamping, processing and other piece parts machining.
4. Pieces of exterior anoding, wiring drawing and printing and other surface treatments
5.+/-0.01mm tolerance will be controlled.

--We supply the metal parts in compliance with customized designs by material of:
Stainless steel, mid steel, Aluminum alloy, Copper and brass, Bronze, Hardened metal.
--Finish parts surface treatment: Zinc plating, Zinc-Nickel plating, Anodising and Etc.

--We can realize the customers' idea and design perfectly by our experienced work and keep confidentially meanwhile.
--Customized drawing are welcome.
--OEM metal work is welcome.
--Both the delivery time and service will exceed your expectation.

Any more qustion,Please contact us for more details about our production capacity which you concern!

Our job is to make your job easier!



item sight glasses,oil gauges
oil drain plugs,steel plugs
breather vent plugs
auto radiator parts
magnetic drain plugs
precision machined parts(brass,steel,stainless steel,aluminum)
hydraulic steel fittings
OEM and ODM business welcome.
website www.grandmfgcn.com
sales department Grace
Email grandmfg@vip.126.com



BSP NPT Metric threadhydraulic steel fittings nickel plated,thread connection 0BSP NPT Metric threadhydraulic steel fittings nickel plated,thread connection 1BSP NPT Metric threadhydraulic steel fittings nickel plated,thread connection 2

item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)


item brass machined parts
material Brass,Copper and Bronze.
finish Natural,Polished,Nickel plated and Chrome Plated
Processing Brass Hot Forged,Bronze Sand Castings,CNC machining, CNC turning or CNC Lathing,Milling,Sandblasted
Dimension Tolerance: CNC Lathe +/-0.01 mm.
General Lathe +/-0.1 to 0.2 mm



BSP NPT Metric threadhydraulic steel fittings nickel plated,thread connection 3BSP NPT Metric threadhydraulic steel fittings nickel plated,thread connection 4BSP NPT Metric threadhydraulic steel fittings nickel plated,thread connection 5

item SS sight glasses
material Stainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



BSP NPT Metric threadhydraulic steel fittings nickel plated,thread connection 6
