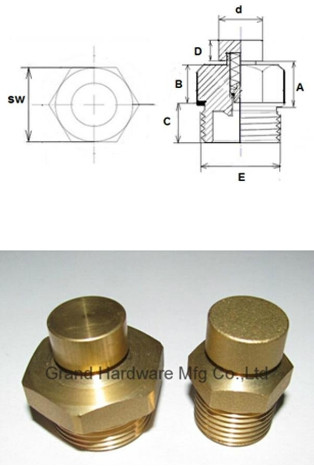

Name: NPT thread 1 inch breather vent plugs for speed reducer, power transmission
Brand: grandmfg
SKU: 1/2",3/4",1",11/2",11/4",13/4",2"
Price: 0.8 USD
Availability: InStock
Rating: 4.7 (199 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Meterial: Brass

Thread: BSP,NPT,Metric Thread

Service: OEM And ODM Business

Finish: No Finishing Or Sandblast

Basic Infomation

Place of Origin: China

Brand Name: grandmfg

Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"

Payment & Shipping Terms

Packaging Details: exporting packaging

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 100000/month

Gallery

NPT thread 1 inch breather vent plugs for speed reducer, power transmission

Product Description

Material: Brass and Aluminum

Finish: Natural and Nickel Plated

Thread Type: BSP,Metric,NPT

Size: Any Size OEM are welcome.

Work Pressure: 0.005 MPa to M 0.03 MPa

Tempture Range: -30 Cent degree to 130 Cent degree.

Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

item	brass breather vent plugs
material	brass or aluminum
Thread Type	BSP,Metric,NPT
finish	Natural and Nickel Plated
size	Any Size OEM are welcome.
Work Pressure	0.005 MPa to M 0.03 Mpa
Tempture Range	: -30 Cent degree to 130 Cent degree.
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

NPT thread 1 inch breather vent plugs for speed reducer, power transmission 0

item	Magnetic oil drain plugs
material	Steel and Aluminum
Magnet Material	NdFeb magnets and Ferrite magnets
Thread Type	BSP,Metric
finish	Steel Zinc plated, Aluminum Natural and Aluminum Oxidized Color.
size	Metric thread,NPT Thread and BSP thread. OEM is welcome.
Usage	Auto engineer,gearbox,pump,oil tank and speed reducer.

NPT thread 1 inch breather vent plugs for speed reducer, power transmission 1

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

NPT thread 1 inch breather vent plugs for speed reducer, power transmission 4

item	SS sight glasses
material	Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

NPT thread 1 inch breather vent plugs for speed reducer, power transmission 5

item	brass sight gauges
Housing	brass tube
tube	quartz glass tube
O-Ring and flat gaskets	NBR Rubber
Thread szie	M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant	: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts	80mm to 600mm

NPT thread 1 inch breather vent plugs for speed reducer, power transmission 6

item	Hydraulic oil level indicator
Housing	Aluminum alloy housing and inside thermoplastic (PC)
O-Ring and flat gaskets	NBR Rubber
Reflector	aluminum with printed white
Bolt	M10 Hexagon nut and washer in galvanized steel
Temperature resistant	: -20’C to 100 ‘C. / 0’F to 220 ‘F
Distance of two bolts	50mm to 500mm
Usage	Thin-wall container, Radiator, Hydraulic reservoir and receivers.

NPT thread 1 inch breather vent plugs for speed reducer, power transmission 7

Just please contact us for checking our stocks and confirming the specifications.

Grace

sales department

grandmfg@vip.126.com
