Home /Products/Fused Sight Glass window/NPT,BSP,G thread1/2",3/4", 1", 11/4",11/2",2"Steel Fused Oil level indicator sight glasses for refrigeration equipment

NPT,BSP,G thread1/2",3/4", 1", 11/4",11/2",2"Steel Fused Oil level indicator sight glasses for refrigeration equipment

1000pcs
MOQ
$ 0.8-10 pcs
Price
NPT,BSP,G thread1/2",3/4", 1", 11/4",11/2",2"Steel Fused Oil level indicator sight glasses for refrigeration equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Steel
Thread: BSP,NPT,Metric Thread
Finish: No Finishing
Window: Natural Glass
Glass Thickness: 2mm-5mm
Basic Infomation
Place of Origin: China
Brand Name: grandmfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 50000/month
Product Description

Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.





Item Fused sight glass
Material steel nickel plated
Window Natural Glass
Glass Thickness 2mm to 5 mm
Working Tempreature : －40℃～200℃
Temperature Assaults Date : －40℃～180℃
Working Pressure 2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof,
well poressure, good anti-cold concussion, marked clearly in the indication of
liquid location etc characters, and favor of the spacious domestic and overseas
air compressor producer deeply.

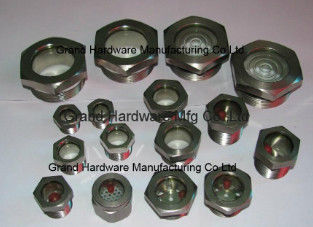

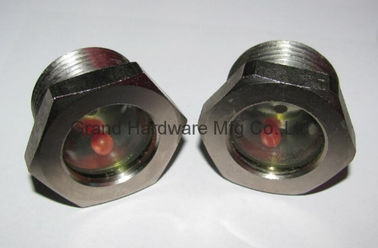

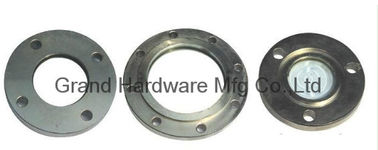

NPT,BSP,G thread1/2",3/4", 1", 11/4",11/2",2"Steel Fused Oil level indicator sight glasses for refrigeration equipment 0NPT,BSP,G thread1/2",3/4", 1", 11/4",11/2",2"Steel Fused Oil level indicator sight glasses for refrigeration equipment 1NPT,BSP,G thread1/2",3/4", 1", 11/4",11/2",2"Steel Fused Oil level indicator sight glasses for refrigeration equipment 2





item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



NPT,BSP,G thread1/2",3/4", 1", 11/4",11/2",2"Steel Fused Oil level indicator sight glasses for refrigeration equipment 3NPT,BSP,G thread1/2",3/4", 1", 11/4",11/2",2"Steel Fused Oil level indicator sight glasses for refrigeration equipment 4



item aluminum sight glasses
material body Aluminum 6061 T6/Aluminum 6063
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type UNC,UNF,Metric and BSP(G thread)
size Below you will get the size you wanted.Another size is okay.
OEM are welcome.
Usage Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

NPT,BSP,G thread1/2",3/4", 1", 11/4",11/2",2"Steel Fused Oil level indicator sight glasses for refrigeration equipment 5NPT,BSP,G thread1/2",3/4", 1", 11/4",11/2",2"Steel Fused Oil level indicator sight glasses for refrigeration equipment 6



item SS sight glasses
material Stainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



NPT,BSP,G thread1/2",3/4", 1", 11/4",11/2",2"Steel Fused Oil level indicator sight glasses for refrigeration equipment 7



Item plastic sight glasses
Material Plastic PMMA
Window plastic
Reflectors Plastic PMMA
Resist Tempreature Range :-30'C to 70'C
Pressure Range 1-5 Bar(0.1MPa to 0.5 MPa).
Size Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.



NPT,BSP,G thread1/2",3/4", 1", 11/4",11/2",2"Steel Fused Oil level indicator sight glasses for refrigeration equipment 8NPT,BSP,G thread1/2",3/4", 1", 11/4",11/2",2"Steel Fused Oil level indicator sight glasses for refrigeration equipment 9



item sight glasses,oil gauges
oil drain plugs,steel plugs
breather vent plugs
auto radiator parts
magnetic drain plugs
precision machined parts(brass,steel,stainless steel,aluminum)
hydraulic steel fittings
OEM and ODM business welcome.
website www.grandmfgcn.com
sales department Grace
Email grandmfg@vip.126.com



Just please contact us for checking our stocks and confirming specifications.

Grace

sales department

grandmfg@vip.126.com
