Home /Products/Fused Sight Glass window/NPT,BSP(G thread),Metric thread 1/2" dome shaped windows

NPT,BSP(G thread),Metric thread 1/2" dome shaped windows

1000pcs
MOQ
$ 0.8-10 pcs
Price

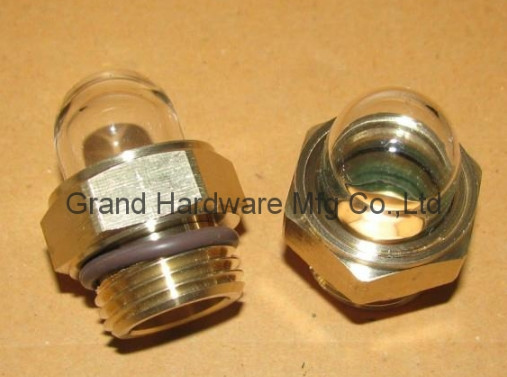

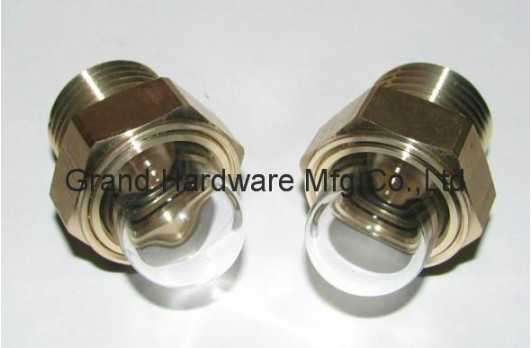

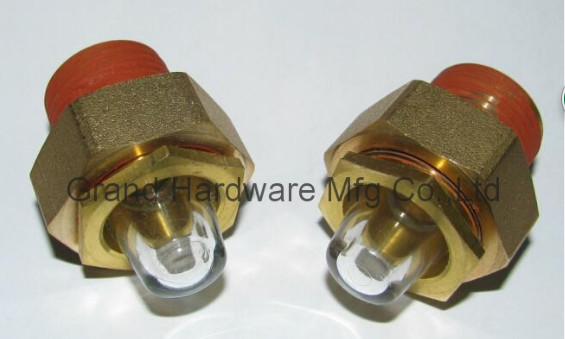

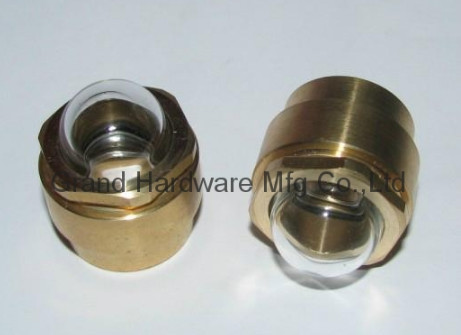

NPT,BSP(G thread),Metric thread 1/2" dome shaped windows
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass Hpb57-3
Finish: No Finishing
Window: Natural Glass
O-ring: Viton,FKM,NBR, Aramid Gasket And Copper Seal
Basic Infomation
Place of Origin: China
Brand Name: grandmfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 50000/month
Product Description

Material Body: Brass

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

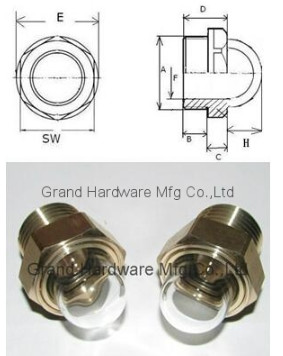

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.



Please contact us for confirming specifications and checking our stocks.
