Home /Products/Brass Oil Sight Glass/Circular oil sight glass with tempered glass window,NPT 3/8, 1/2, 3/4,1 INCH,no finishing

Circular oil sight glass with tempered glass window,NPT 3/8, 1/2, 3/4,1 INCH,no finishing

2000pcs
MOQ
0.5 to 6 usd/pcs
Price
Circular oil sight glass with tempered glass window,NPT 3/8, 1/2, 3/4,1 INCH,no finishing
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass Hpb57-3
Finish: No Finishing
Connection: Thread
Basic Infomation
Place of Origin: China
Brand Name: Grand
Certification: ISO9001
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: cartons and pallets
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 50000 pcs/weeks
Product Description

Circular oil sight glass, oil sight gage, site glass, oil level indicator, liquid sight glass, oil sight window, view ports, male thread sight glass, visual level sight gauge, visual level sight glass, visual level indicator, domed shaped oil sight glass, oil sight plugs

Body material: aluminum, brass, PC, PPMA and steel

Glass: Real glass 2 mm to 5 mm thickness.

O Ring: Viton O rings

Size: M10 to M42, 1/2 inch to 2 inch

Thread Type: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)

Operate Temperature: -20 cent degree to 120 cent degree

Operate Pressure: 5-10 Bar or 0.5MPa to 1 MPa.

MOQ: 2000 Pcs each size

Delivery time: 20 days.

Payment: T/T

Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

Different company have different requirements, OEM Service is welcome.

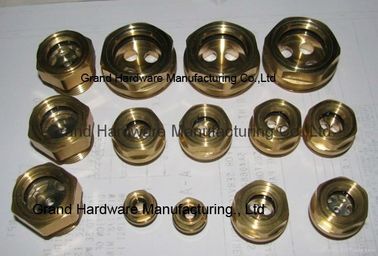

item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Circular oil sight glass with tempered glass window,NPT 3/8, 1/2, 3/4,1 INCH,no finishing 0Circular oil sight glass with tempered glass window,NPT 3/8, 1/2, 3/4,1 INCH,no finishing 1

item aluminum sight glasses
material body Aluminum 6061 T6/Aluminum 6063
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type UNC,UNF,Metric and BSP(G thread)
size Below you will get the size you wanted.Another size is okay.
OEM are welcome.
Usage Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.



Circular oil sight glass with tempered glass window,NPT 3/8, 1/2, 3/4,1 INCH,no finishing 2Circular oil sight glass with tempered glass window,NPT 3/8, 1/2, 3/4,1 INCH,no finishing 3

Item Fused sight glass
Material steel nickel plated
Window Natural Glass
Glass Thickness 2mm to 5 mm
Working Tempreature : －40℃～200℃
Temperature Assaults Date : －40℃～180℃
Working Pressure 2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof,
well poressure, good anti-cold concussion, marked clearly in the indication of
liquid location etc characters, and favor of the spacious domestic and overseas
air compressor producer deeply.



Circular oil sight glass with tempered glass window,NPT 3/8, 1/2, 3/4,1 INCH,no finishing 4Circular oil sight glass with tempered glass window,NPT 3/8, 1/2, 3/4,1 INCH,no finishing 5

Item Flat flange sight glass
Material steel nickel plated
Window Natural Glass
Glass Thickness 2mm to 5 mm
Working Tempreature : －40℃～200℃
Temperature Assaults Date : －40℃～180℃
Working Pressure 2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof,
well poressure, good anti-cold concussion, marked clearly in the indication of
liquid location etc characters, and favor of the spacious domestic and overseas
air compressor producer deeply.



Circular oil sight glass with tempered glass window,NPT 3/8, 1/2, 3/4,1 INCH,no finishing 6

item brass breather vent plugs
material brass or aluminum
Thread Type BSP,Metric,NPT
finish Natural and Nickel Plated
size Any Size OEM are welcome.
Work Pressure 0.005 MPa to M 0.03 Mpa
Tempture Range : -30 Cent degree to 130 Cent degree.
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers,
Gearboxes, Speed Reducer, Compressor and Power Transmission.



Circular oil sight glass with tempered glass window,NPT 3/8, 1/2, 3/4,1 INCH,no finishing 7Circular oil sight glass with tempered glass window,NPT 3/8, 1/2, 3/4,1 INCH,no finishing 8
