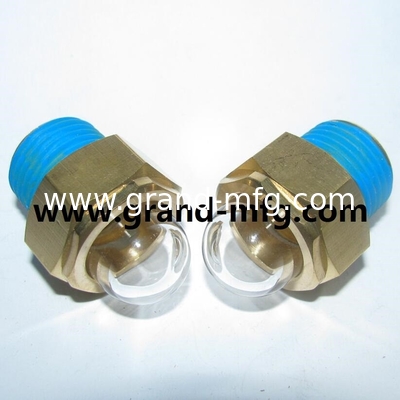

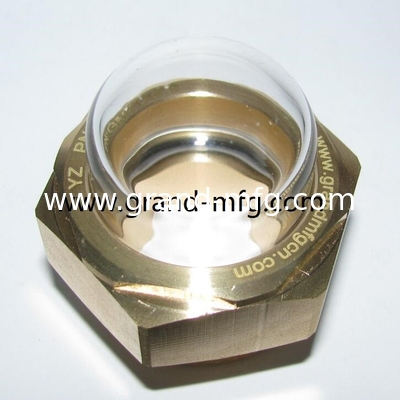

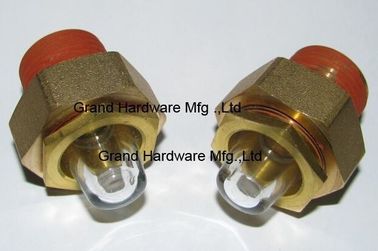

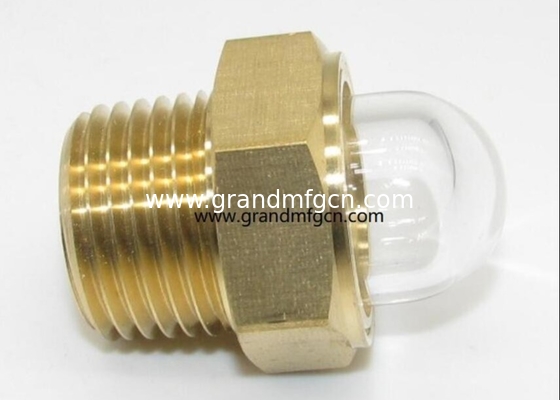

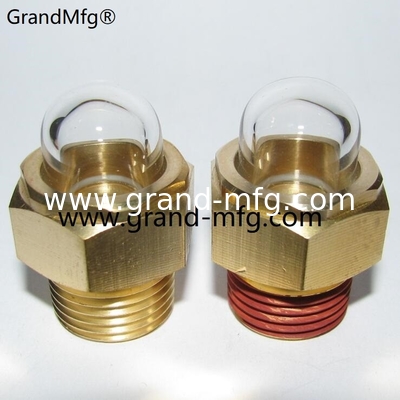

Domed shape oil sight glass, domed oil sight gauge,
domed sight glass plug, domed sights gauge
Material
Body: Aluminum, Steel and Brass
O-Ring: Viton and NBR
Glass Thickness: 3mm
Glass Type: Borosilicate Glass
Resist Temperature Range: -30 Cent degrees to 200 Cent degrees.
Pressure Range: 5-10 Bar or 0.5MPa to 1 MPa.
Connections: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)
Size:M10X1, M16X1.5,M20X1.5, ,M27X1.5,M33X1.5,
G 3/8,G 1/2,G 3/4,G 1 NPT 3/8, NPT 1/2,NPT 3/4,NPT 1
MOQ: 2000 Pcs each size
Delivery time: 20 days.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer,
Compressor and Power Transmission.

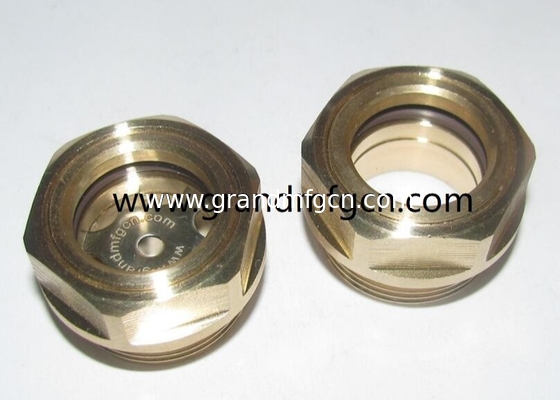

| item |
brass sight glasses |
| material |
brass |
| O-Ring |
Viton,FKM,NBR, Aramid gasket and Copper seal |
| window |
Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness |
2mm to 5 mm |
| Reflectors |
Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range |
.-30'C TO 120'C |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
|
| item |
brass breather vent plugs |
| material |
brass or aluminum |
| Thread Type |
BSP,Metric,NPT |
| finish |
Natural and Nickel Plated |
| size |
Any Size OEM are welcome. |
| Work Pressure |
0.005 MPa to M 0.03 Mpa |
| Tempture Range |
: -30 Cent degree to 130 Cent degree. |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers,
Gearboxes, Speed Reducer, Compressor and Power Transmission. |
| item |
brass sight gauges |
| Housing |
brass tube |
| tube |
quartz glass tube |
| O-Ring and flat gaskets |
NBR Rubber |
| Thread szie |
M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”,
G1/2”, NPT1/4, NPT3/8, NPT1/2” |
| Temperature resistant |
: -20’C to 120 ‘C. / 0’F to 260 ‘F |
| Distance of two bolts |
80mm to 600mm |
Stainless Steel Oil level sight glass
Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L
O-Ring: Viton,FKM,FPM,NBR, Aramid gasket,Silicone Rubber,and Copper seal
Glass Thickness: 2mm to 8 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 220'C
Pressure Range: 5-120 Bar(0.5MPa to 12 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
