Name: Metric thread M10x1 M16x1.5 M18x1.5 M20x1.5 M22x1.5 M24x1.5 M26x1.5 M27x1.5 blower aluminium oil level sight glasses
Brand: grandmfg
SKU: M10,M16,M20,M22,M26,M27,M30,M33,M42,M60
Price: 0.8 USD
Availability: InStock
Rating: 4.8 (189 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Aluminium

Finish: No Finishing

Window: Material Body: Aluminum 6061 T6/Aluminum 6063 O-Ring: Viton,FKM,NBR, Aramid Gasket And Copper Seal Glass Thickness: 2mm To 5 Mm Reflectors: Stainless Steel 304 Reflector (Any Type You Can Chose With Reflector Or Without Reflector, Y

Glass Thickness: 2mm-8mm

Basic Infomation

Place of Origin: China

Brand Name: grandmfg

Model Number: M10,M16,M20,M22,M26,M27,M30,M33,M42,M60

Payment & Shipping Terms

Packaging Details: exporting packaging

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 100000/month

Gallery

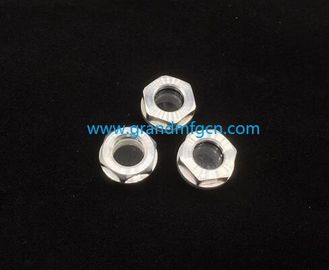

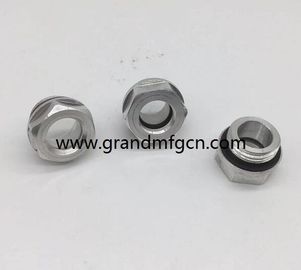

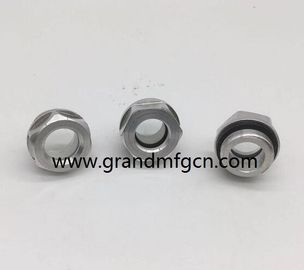

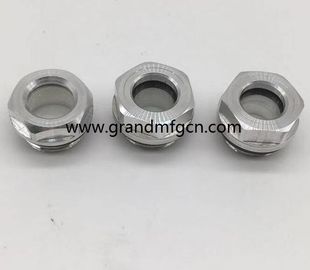

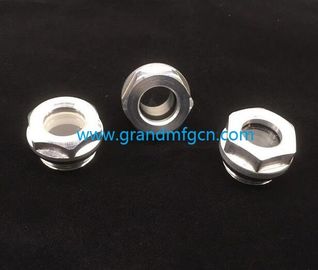

Metric thread M10x1 M16x1.5 M18x1.5 M20x1.5 M22x1.5 M24x1.5 M26x1.5 M27x1.5 blower aluminium oil level sight glasses

Product Description

Material Body: Aluminum 6061 T6/Aluminum 6063

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

item	sight glasses,oil gauges
	oil drain plugs,steel plugs
	breather vent plugs
	auto radiator parts
	magnetic drain plugs
	precision machined parts(brass,steel,stainless steel,aluminum) hydraulic steel fittings OEM and ODM business welcome.
website	www.grandmfgcn.com
sales department	Grace
Email	grandmfg@vip.126.com

Metric thread M10x1 M16x1.5 M18x1.5 M20x1.5 M22x1.5 M24x1.5 M26x1.5 M27x1.5 blower aluminium oil level sight glasses 0

item	aluminum sight glasses
material body	Aluminum 6061 T6/Aluminum 6063
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	UNC,UNF,Metric and BSP(G thread)
size	Below you will get the size you wanted.Another size is okay. OEM are welcome.
Usage	Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

Metric thread M10x1 M16x1.5 M18x1.5 M20x1.5 M22x1.5 M24x1.5 M26x1.5 M27x1.5 blower aluminium oil level sight glasses 2

Metric thread M10x1 M16x1.5 M18x1.5 M20x1.5 M22x1.5 M24x1.5 M26x1.5 M27x1.5 blower aluminium oil level sight glasses 3

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Metric thread M10x1 M16x1.5 M18x1.5 M20x1.5 M22x1.5 M24x1.5 M26x1.5 M27x1.5 blower aluminium oil level sight glasses 5

item	steel sight glasses
material	steel
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Metric thread M10x1 M16x1.5 M18x1.5 M20x1.5 M22x1.5 M24x1.5 M26x1.5 M27x1.5 blower aluminium oil level sight glasses 7

Item	Fused sight glass
Material	steel nickel plated
Window	Natural Glass
Glass Thickness	2mm to 5 mm
Working Tempreature	: －40℃～200℃
Temperature Assaults Date	: －40℃～180℃
Working Pressure	2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof, well poressure, good anti-cold concussion, marked clearly in the indication of liquid location etc characters, and favor of the spacious domestic and overseas air compressor producer deeply.

Metric thread M10x1 M16x1.5 M18x1.5 M20x1.5 M22x1.5 M24x1.5 M26x1.5 M27x1.5 blower aluminium oil level sight glasses 9
