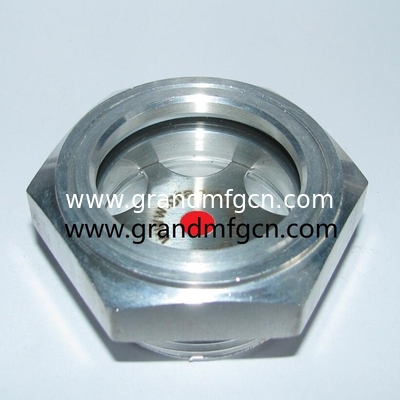

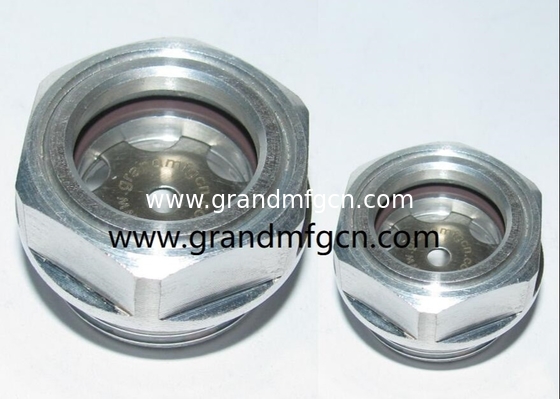

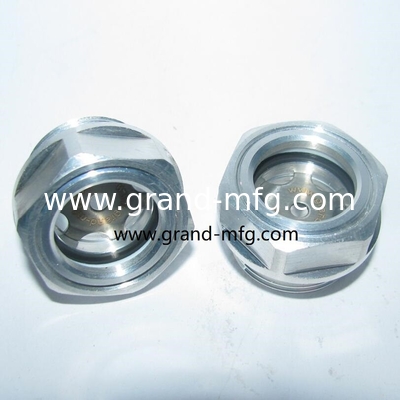

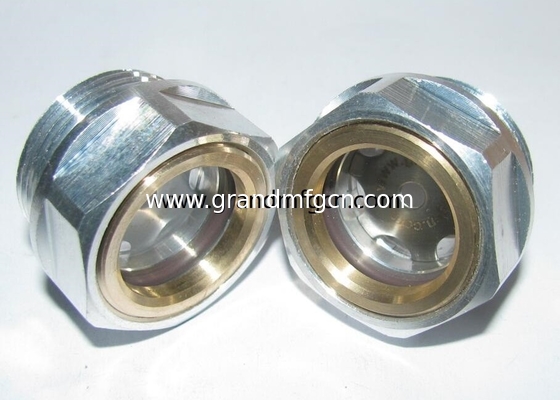

Aluminum Oil Sight Glass, Oil Level Indicator. Aluminum oil level gauge
Project Equipment offers valves, pipes, tubes, pipe fittings, etc.
The Aluminum Body Sight Glass or Oil level Indicator is provided with heat and oil resistance Viton rubber
It is capable of withstanding temperature of up to 120 degree C.
This Oil Level Indicator is used in all kinds of gear box, pumps, compressors, gear motor, hoists, hydraulic
and pneumatic systems.
This Aluminum Body Sight Glass or Oil level Indicator is available in 1/4, 3/8, 3/4, 1 1/4, 1/2, 1 and 1 1/2 inches
BSP,M10 to M48, Npt thread is available.
| item | brass sight glasses |
| material | brass |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| Item | Fused sight glass |
| Material | steel nickel plated |
| Window | Natural Glass |
| Glass Thickness | 2mm to 5 mm |
| Working Tempreature | : －40℃～200℃ |
| Temperature Assaults Date | : －40℃～180℃ |
| Working Pressure | 2.5, 4.0Mpa |
| Our products are provided with simple structure, novel appearance, high airproof, well poressure, good anti-cold concussion, marked clearly in the indication of liquid location etc characters, and favor of the spacious domestic and overseas air compressor producer deeply. |
|
| item | SS sight glasses |
| material | Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| Item | plastic sight glasses |
| Material | Plastic PMMA |
| Window | plastic |
| Reflectors | Plastic PMMA |
| Resist Tempreature Range | :-30'C to 70'C |
| Pressure Range | 1-5 Bar(0.1MPa to 0.5 MPa). |
| Size | Below you will get the size you wanted.Another size is okay.OEM are welcome. |
| Usage | Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission. |
| item | brass sight gauges |
| Housing | brass tube |
| tube | quartz glass tube |
| O-Ring and flat gaskets | NBR Rubber |
| Thread szie | M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2” |
| Temperature resistant | : -20’C to 120 ‘C. / 0’F to 260 ‘F |
| Distance of two bolts | 80mm to 600mm |
