Features

Specifications

Material: Steel Plated

Thread: NPT,BSP, METRIC THREAD,UNF

Service: Custom Available

Highlight:

flange fused sight glass

fused glass oil sight plug

sight window

Basic Infomation

Brand Name: grand-mfg

Payment & Shipping Terms

Packaging Details: box, pallet

Delivery Time: 8 work days

Payment Terms: T/T

Supply Ability: 50000pcs month

Gallery

Fused glass steel sight glass used for refrigeration equipment speed reducer gearboxes oil level sight gauge bsp & npt

Product Description

Pump Gearboxes, Speed Reducer, Compressor and Power

Transmission Fused glass style sight windows, sight glass

and sight gauge.

Feature glass to metal bond for utmost reliability.

Plated steel bodies have convenient hex wrench surface.

Connection are Standard NPT and BSP(G thread) from 1/4" to 2".

Windows are clear, ripple free, and flush with the front face,

Having no recess on which dirt might collect.

Specifications:

Service: Compatible gases and liquids.

Window: nature glass.

Body: plated steed and stainless steel.

Temperature: -30'C to 260 'C (500 ‘F).

Pressure: 125 psig (8.6bar)

Connections: NPT and BSP (G thread)

Size: 1/4" to 2"

MOQ: 1000 Pcs each size

Delivery time: 20 days.

Usage: Pump Gearboxes, Speed Reducer, Compressor and Power Transmission.

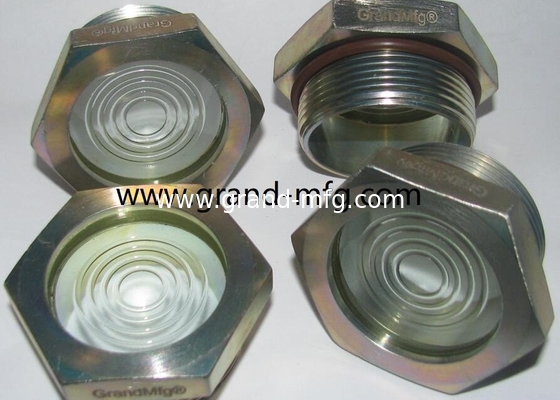

Fused glass steel sight glass used for refrigeration equipment speed reducer gearboxes oil level sight gauge bsp & npt 0

item	steel sight glasses
material	steel
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Fused glass steel sight glass used for refrigeration equipment speed reducer gearboxes oil level sight gauge bsp & npt 2

item	SS sight glasses
material	Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Fused glass steel sight glass used for refrigeration equipment speed reducer gearboxes oil level sight gauge bsp & npt 3

item	aluminum sight glasses
material body	Aluminum 6061 T6/Aluminum 6063
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	UNC,UNF,Metric and BSP(G thread)
size	Below you will get the size you wanted.Another size is okay. OEM are welcome.
Usage	Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

Fused glass steel sight glass used for refrigeration equipment speed reducer gearboxes oil level sight gauge bsp & npt 6

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Fused glass steel sight glass used for refrigeration equipment speed reducer gearboxes oil level sight gauge bsp & npt 7
