Features

Specifications

Material: Ss304 Ss316L

Service: ODM And OEM

Finishing: Natural

Basic Infomation

Place of Origin: China

Brand Name: grandmfgcn

Model Number: GM

Payment & Shipping Terms

Packaging Details: standard export packaging

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 100000/month

Gallery

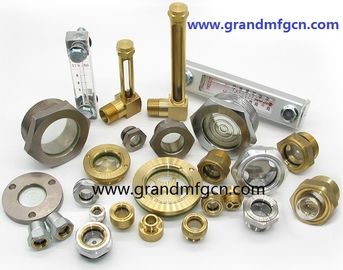

custom NPT / BSP thread stainless steel oil level SS304 oil level sight windows oil level gauge indicators

Product Description

item	SS sight glasses
material	Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

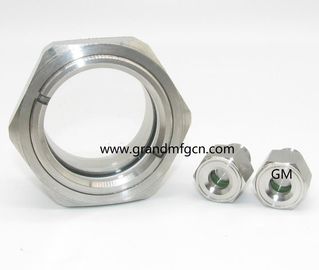

custom NPT / BSP thread stainless steel oil level SS304 oil level sight windows oil level gauge indicators 0

item	SS machined parts
material	SS304,SS316
finish	Natural
service	OEM and ODM business
Dimension Tolerance:	CNC Lathe +/-0.01 mm. General Lathe +/-0.1 to 0.2 mm

custom NPT / BSP thread stainless steel oil level SS304 oil level sight windows oil level gauge indicators 5

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

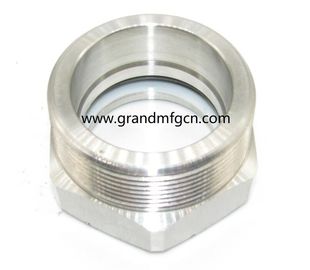

custom NPT / BSP thread stainless steel oil level SS304 oil level sight windows oil level gauge indicators 8

item	aluminum sight glasses
material body	Aluminum 6061 T6/Aluminum 6063
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	UNC,UNF,Metric and BSP(G thread)
size	Below you will get the size you wanted.Another size is okay. OEM are welcome.
Usage	Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

custom NPT / BSP thread stainless steel oil level SS304 oil level sight windows oil level gauge indicators 11

item	steel sight glasses
material	steel
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

custom NPT / BSP thread stainless steel oil level SS304 oil level sight windows oil level gauge indicators 15

custom NPT / BSP thread stainless steel oil level SS304 oil level sight windows oil level gauge indicators 16
