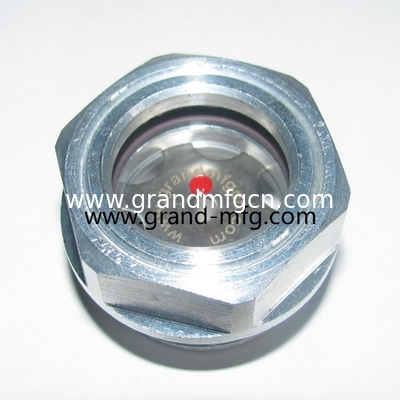

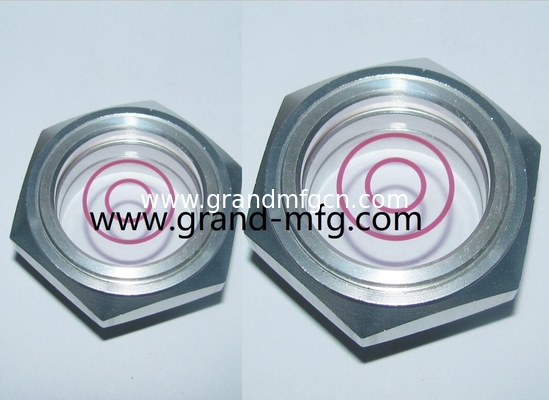

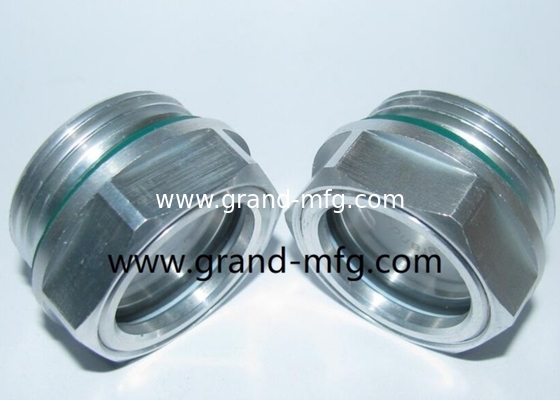

Name: Male thread 1" 2" Hexagon Aluminum Oil Sight Glass (Metric & BSP thread),no finishing
Brand: Grand
SKU: 1/2",3/4",1",11/2",11/4",13/4",2"
Rating: 4.9 (151 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Aluminium

Finish: No Finishing

Connection: Thread

Basic Infomation

Place of Origin: China

Brand Name: Grand

Certification: ISO9001

Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"

Payment & Shipping Terms

Packaging Details: exporting packaging or as required.

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 100000/month

Gallery

Male thread 1" 2" Hexagon Aluminum Oil Sight Glass (Metric & BSP thread),no finishing

Product Description

GrandMfg® Oil level sight glass winow
Aluminum Oil Sight glass, Sight Gauge, Oil level sight glass, liquid Sight Glass, Oil level indicator, Viewport
Material
Body: Aluminum, Steel and Brass
O-Ring: Viton and NBR
Glass: Real Glass
Glass Thickness: 2mm to 5 mm
Glass Type: General Glass, Tempered Glass and Borosilicate Glass
Resist Temperature Range:-30' to 120'
Size:
M10X1,M12X1.5,M14X1.5,M16X1.5,M20X1.5,M24X1.5,M27X1.5,M42X2,
G 3/8,G 1/2,G 3/4,G 1 NPT 3/8, NPT 1/2,NPT 3/4,NPT 1
Usage: Pump Gearboxes, Speed Reducer, Compressor and Power Transmission.

More information, please feel free to contact me: grandmfgcn at yahoo dot com

item	aluminum sight glasses
material body	Aluminum 6061 T6/Aluminum 6063
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm

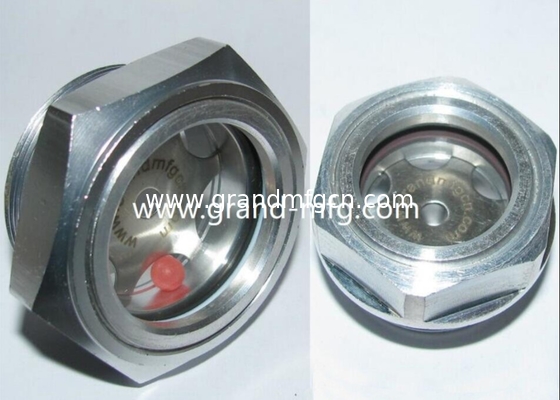

Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	UNC,UNF,Metric and BSP(G thread)
size	Below you will get the size you wanted.Another size is okay. OEM are welcome.
Usage	Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

Male thread 1" 2" Hexagon Aluminum Oil Sight Glass (Metric & BSP thread),no finishing 0

Male thread 1" 2" Hexagon Aluminum Oil Sight Glass (Metric & BSP thread),no finishing 1

Item	plastic sight glasses
Material	Plastic PMMA
Window	plastic
Reflectors	Plastic PMMA
Resist Tempreature Range	:-30'C to 70'C
Pressure Range	1-5 Bar(0.1MPa to 0.5 MPa).
Size	Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage	Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

Male thread 1" 2" Hexagon Aluminum Oil Sight Glass (Metric & BSP thread),no finishing 4

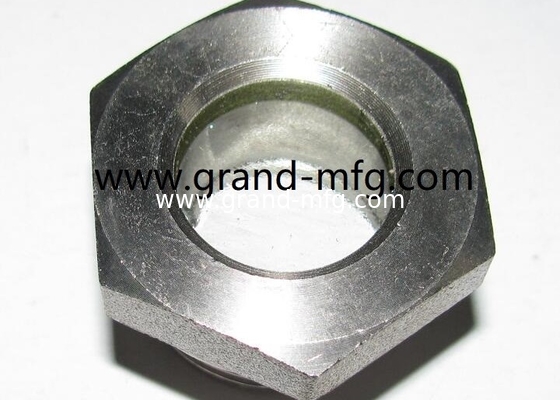

item	steel sight glasses
material	steel
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Male thread 1" 2" Hexagon Aluminum Oil Sight Glass (Metric & BSP thread),no finishing 5

Item	Fused sight glass
Material	steel nickel plated
Window	Natural Glass
Glass Thickness	2mm to 5 mm
Working Tempreature	: －40℃～200℃
Temperature Assaults Date	: －40℃～180℃
Working Pressure	2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof, well poressure, good anti-cold concussion, marked clearly in the indication of liquid location etc characters, and favor of the spacious domestic and overseas air compressor producer deeply.

Male thread 1" 2" Hexagon Aluminum Oil Sight Glass (Metric & BSP thread),no finishing 6

item	Radiator Coolant Filler Necks & Cap
material	SUS304,Steel,aluminum and brass.
Main area used	Various brands of car,truck,etc.
Withstand Max Pressure	0.6MPa,0.9MPa and 1.1MPa
All goods are strictly monitored and inspected from production to delivery.
Transportation: Container Freight & International Multimodal Transport
Packing: General exporting package or according to customers' requirements.

Male thread 1" 2" Hexagon Aluminum Oil Sight Glass (Metric & BSP thread),no finishing 8

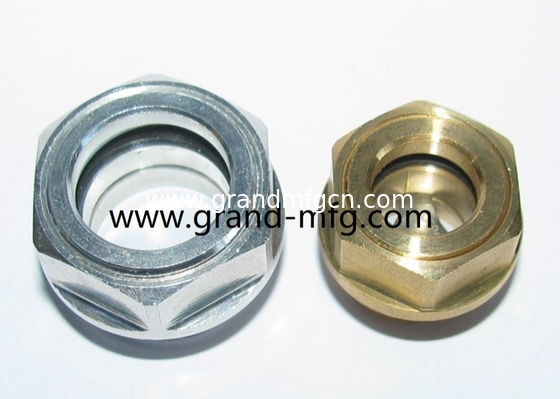

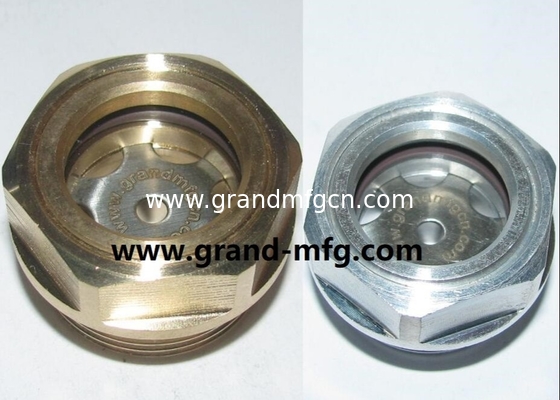

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Male thread 1" 2" Hexagon Aluminum Oil Sight Glass (Metric & BSP thread),no finishing 9

item	sight glasses,oil gauges
	oil drain plugs,steel plugs
	breather vent plugs
	auto radiator parts
	magnetic drain plugs
	precision machined parts(brass,steel,stainless steel,aluminum) hydraulic steel fittings OEM and ODM business welcome.
website	www.grandmfgcn.com
sales department	Grace
Email	grandmfg@vip.126.com

Male thread 1" 2" Hexagon Aluminum Oil Sight Glass (Metric & BSP thread),no finishing 13
