Name: male BSP thread 1" steel fused sight windows,indicators with natural glass
Brand: Grand Hardware Manufacturing Co.,Ltd
SKU: 1/2",3/4",1",11/2",11/4",13/4",2"
Price: 4.80 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Steel

Thread: BSP,NPT,Metric Thread

Finish: Nickel Plated

Basic Infomation

Place of Origin: China

Brand Name: grandmfg

Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"

Payment & Shipping Terms

Packaging Details: exporting packaging

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 100000/month

Gallery

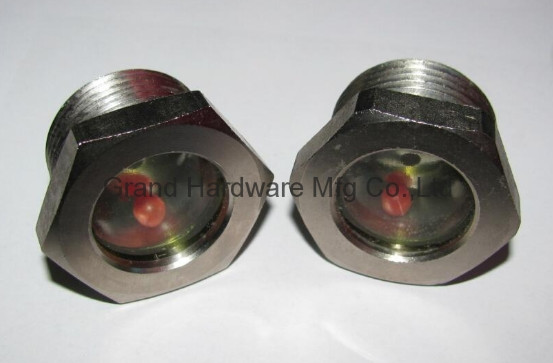

male BSP thread 1" steel fused sight windows,indicators with natural glass

Product Description

Specifications:

Service: Compatible gases and liquids.

Window: nature glass (3mm to 6mm)

Body: Nickel Plated steet,stainless steel 304 and S.S 316

Reflector: S.S 304 Customers can chosed Plastic float Ball for oil or other liquid.

Temperature: -30'C to 260 'C (500 ‘F).

Max Pressure: 12 MPa(1740Psi)

Connections: NPT,NPTF,UNC,UNF,Metric and BSP (G thread)

Size: 1/4" to 2"

Usage: refrigeration machine, compressor,Hydraulic reservoir,Power Transimission and various machine.

Item	Fused sight glass
Material	steel nickel plated
Window	Natural Glass
Glass Thickness	2mm to 5 mm
Working Tempreature	: －40℃～200℃
Temperature Assaults Date	: －40℃～180℃
Working Pressure	2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof, well poressure, good anti-cold concussion, marked clearly in the indication of liquid location etc characters, and favor of the spacious domestic and overseas air compressor producer deeply.

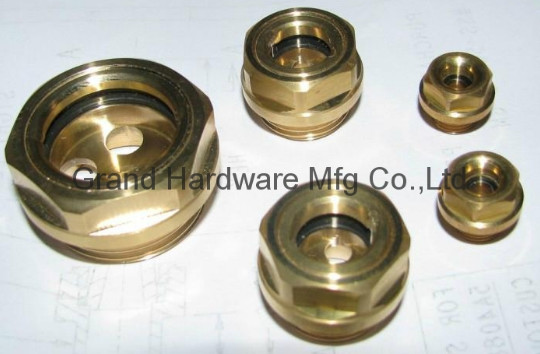

item	brass sight gauges
Housing	brass tube
tube	quartz glass tube
O-Ring and flat gaskets	NBR Rubber
Thread szie	M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant	: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts	80mm to 600mm

male BSP thread 1" steel fused sight windows,indicators with natural glass 3

item	SS sight glasses
material	Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

male BSP thread 1" steel fused sight windows,indicators with natural glass 5

item	brass sight gauges
Housing	brass tube
tube	quartz glass tube
O-Ring and flat gaskets	NBR Rubber
Thread szie	M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant	: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts	80mm to 600mm

male BSP thread 1" steel fused sight windows,indicators with natural glass 6

item	brass breather vent plugs
material	brass or aluminum
Thread Type	BSP,Metric,NPT
finish	Natural and Nickel Plated
size	Any Size OEM are welcome.
Work Pressure	0.005 MPa to M 0.03 Mpa
Tempture Range	: -30 Cent degree to 130 Cent degree.
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

male BSP thread 1" steel fused sight windows,indicators with natural glass 7

item	Radiator Coolant Filler Necks & Cap
material	SUS304,Steel,aluminum and brass.
Main area used	Various brands of car,truck,etc.
Withstand Max Pressure	0.6MPa,0.9MPa and 1.1MPa
All goods are strictly monitored and inspected from production to delivery.
Transportation: Container Freight & International Multimodal Transport
Packing: General exporting package or according to customers' requirements.

male BSP thread 1" steel fused sight windows,indicators with natural glass 8
